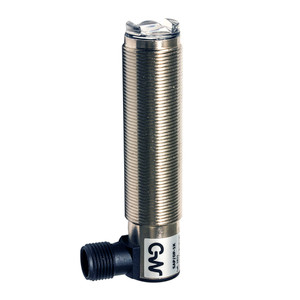

Datasensing SAP/0P-1K Sensors
Datasensing
$185.03
The Datasensing SAP/0P-1K Sensors offer a versatile solution for various sensing applications with their wide range of models, including diffuse, retro-reflective, polarized, and fixed-focus options. Each model is equipped with a sensitivity adjustment trimmer, allowing for precise calibration to suit specific needs. The sensors feature a double LED indicator for easy status monitoring, with green indicating power ON and yellow for status output.
Designed with durability in mind, these sensors boast an IP65 protection degree, ensuring complete protection against electrical damage. They are also equipped with NO/NC selectable output and a wide range of plugs, accessories, and reflectors to enhance functionality. The sensors are CE approved, guaranteeing compliance with international safety standards.
Key specifications include a nominal sensing distance of 3 meters, a thermal drift of Sr at 10% Sr, and a repeat accuracy of 5%. The sensors operate on a polarized function principle and are optimized for use with the RL110 reflector. With an axial optic position and PNP L/D selectable output type, these sensors offer flexibility in various applications.
The SAP/0P-1K Sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a robust housing made of nickel-plated brass and nylon plug. They are equipped with short-circuit and reverse polarity protection, ensuring reliable performance. The sensors are also resistant to external light interference, withstanding up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight.
With a compact design measuring 21.4mm x 90mm and a weight of 100g, these sensors are easy to install and integrate into existing systems. The M12 plug 90° connection and supplied M18 x 1 nuts facilitate secure mounting. The sensors are EMC compatible with EN 60947-5-2 standards and have been tested for vibration and shock resistance according to IEC 60068-2-6 and IEC 60068-2-27, respectively.
Overall, the Datasensing SAP/0P-1K Sensors provide a reliable and adaptable solution for a wide range of industrial sensing applications.
- Nominal sensing distance:
- 3m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel-plated brass / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
