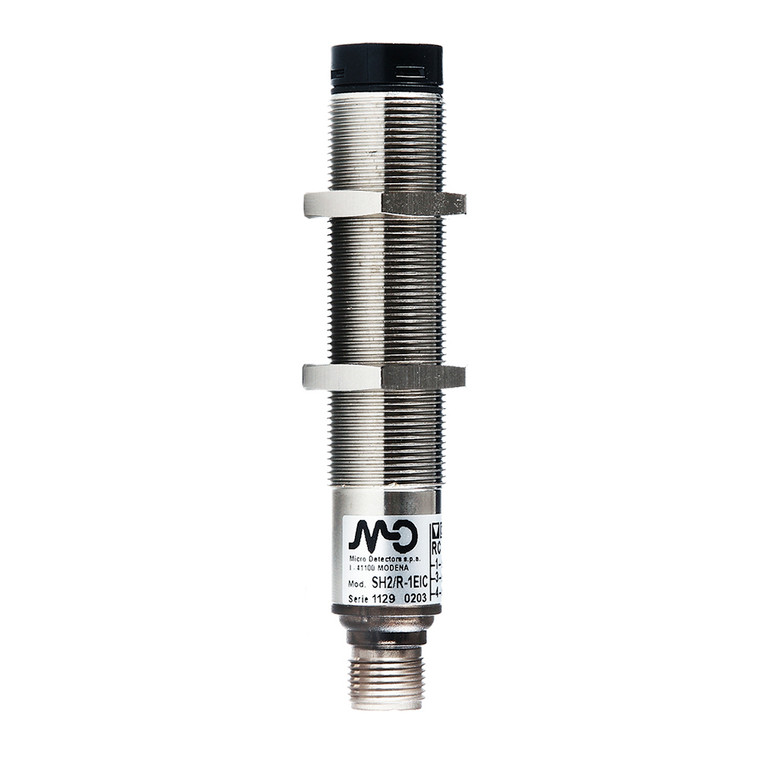

The Datasensing SH2/R-3EIC Sensors are designed for optimal safety and reliability, featuring a robust M18 metal housing with a nominal sensing distance of 5 meters. These Type 2 safety photocell receivers are equipped with a 90° M12 I/O connection and comply with IEC61131-2 standards, ensuring seamless integration with any safety module. With a frequency of 123 kHz, these sensors are ideal for applications requiring precise detection and quick response times, with a light/dark transition response time of 200µs and a dark/light transition of 400µs.
The sensors boast an effective aperture angle of ? ±5°, with a typical angle of ±1.8°, and are designed to operate efficiently within a temperature range of -20°C to +55°C. The durable PBT housing and glass active head material provide excellent protection against environmental factors, with an IP67 degree of protection ensuring resistance to dust and water ingress.
These sensors are EN50100 Category 2 and Category 4 compliant, making them suitable for use in safety systems that meet EN ISO 13849 standards when paired with an appropriate safety control unit. The LED indicators provide clear alignment feedback, and the sensors are approved by CE and TÜV, guaranteeing high-quality performance and safety. Supplied with two nuts for easy installation, the Datasensing SH2/R-3EIC Sensors are a reliable choice for enhancing safety in various industrial applications.
- Nominal sensing distance:
- 5m (ExG=2)
- Thermal drift of Sr:
- ? 10%
- Resolution:
- Single-beam
- controlled height:
- Single-beam
- Effective Aperture Angle:
- ? ±5°
- Effective Aperture Angle:
- Typical ±1,8°
- Function Principle:
- Receiver
- Notes:
- not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function
- Description:
- M18 Type 2 Safety Photocell Receiver
- Type:
- Type 2 safety photocell
- SIL:
- 1
- SILCL:
- 1
- PL:
- c
- PFHd:
- 1,00E-06
- MTTFd:
- 20 years
- Output type:
- Totem-pole
- Resposnse time for light/dark transition:
- 200µs
- Resposnse time for dark/light transition:
- 400µs
- Operating Voltage:
- 10 30 Vdc
- No-Load supply current:
- ? 25mA
- Load current:
- ? 70mA
- Output voltage drop:
- 2,5V @ 50mA
- Max ripple content:
- ? 5 Vpp
- LED indicators:
- Yellow (alignement)
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -20°C +55°C
- Storage temperature:
- -40°C +75°C
- Approvals:
- CE, TÜV
- Shocks and vibrations:
- 10g - 16ms (according to IEC600068-2-29) 10Hz 55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x nuts
- Operating Temperature:
- -20 +55°C (Without freeze)
- Mechanical Protection:
- IP67
