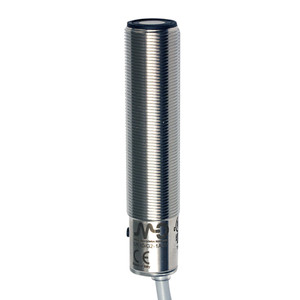

The Datasensing UK1D/G9-1ASY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a versatile 0-10 V+ NPN NO/NC output, with a sensing range of 150-1600 mm. The robust AISI316L stainless steel housing ensures durability and resistance to harsh environments, while the 2m cable provides flexibility in installation.
Equipped with a teach-in button, these sensors allow for easy adjustment of the working area, whether through window teach or single point teach, making them suitable for a variety of applications. The multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, as well as reverse analog output slope.
With a nominal sensing distance of 1600mm and a thermal drift of ±2%, these sensors maintain high accuracy and repeatability, with a resolution of ?3mm and a beam angle of 15° ± 2°. The adjustable hysteresis function, programmable double digital outputs, and specific level detection capabilities enhance their functionality.
Designed for reliability, the sensors include features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. They operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring they meet rigorous safety and performance standards.
Ideal for industrial applications, the Datasensing UK1D/G9-1ASY Sensors offer a robust solution with a high degree of protection (IP67) against dust and water ingress, making them suitable for challenging environments. Supplied with two nuts and washers for secure installation, these sensors are ready to deliver reliable performance in your sensing applications.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
