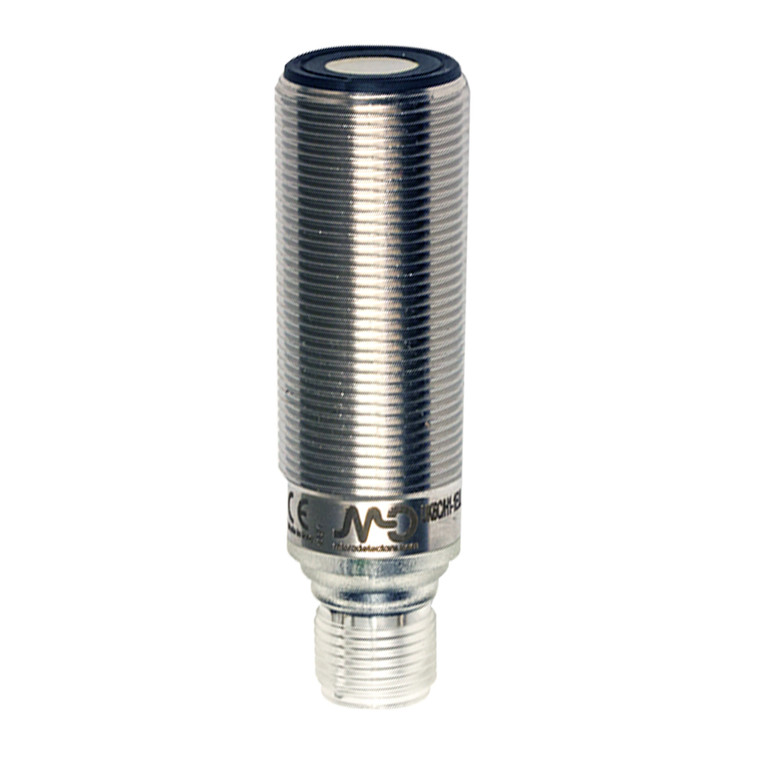

Datasensing UK6D/HN-1EUL Sensors

The Datasensing UK6D/HN-1EUL Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring a compact M18 diffuse sensor with a short housing, these sensors offer both digital and analogue outputs. With a nominal sensing distance of 1200mm and a minimum sensing distance of 80mm, they are ideal for a variety of applications. The sensors boast a thermal drift of Sr ?2%, a repeat accuracy of 0.50%, and a beam angle of 8° ± 2°, ensuring accurate and consistent performance. The resolution is ?3mm, and sensitivity can be easily adjusted using the teach-in button. These sensors operate on a diffuse reflection principle with an NPN output type and NO/NC output function. They have a switching frequency of 5Hz and a response time of 400ms, making them suitable for dynamic environments. The operating voltage ranges from 10 to 30Vdc, with a no-load supply current of ?35mA at 30V. The sensors can handle a load current of 100mA and have a leakage current of 10?A at 30Vcc. Constructed with AISI316L stainless steel housing, the sensors are robust and durable, with an IP67 degree of protection. They are equipped with LED indicators for easy status monitoring: green for echo and yellow for output. The sensors include short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation. With a transducer frequency of 200kHz and dimensions of M18 x 1 / L = 60.3mm, these sensors are compact yet powerful. They are approved by CE and cULus and comply with EMC compatibility standards IEC 60947-5-2. The sensors come with supplied accessories, including two nuts M18x1 and two washers Ø 18, for easy installation. Operating efficiently in temperatures ranging from -20°C to +70°C, they are designed to withstand harsh conditions without compromising performance.
