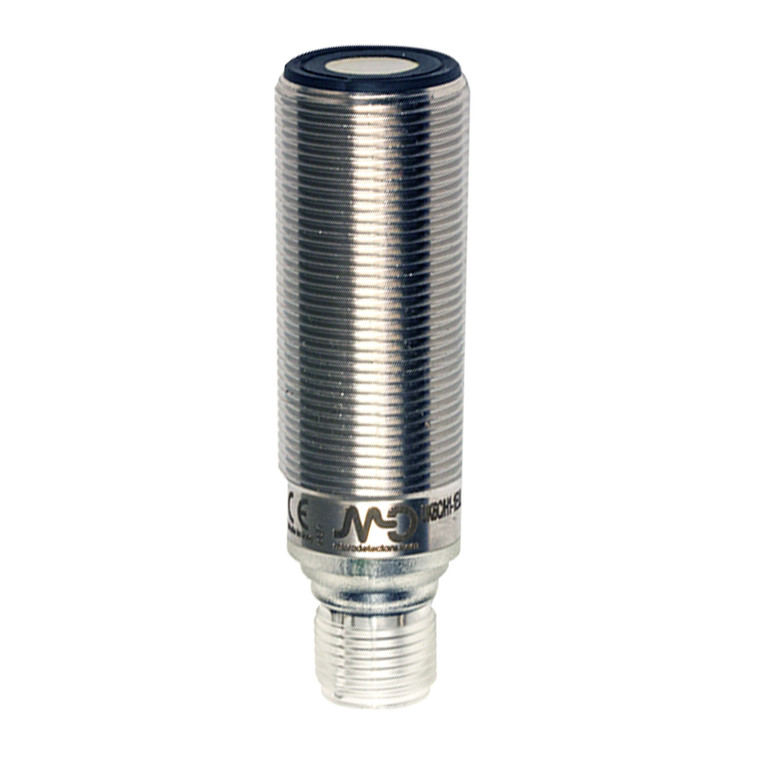

The Datasensing UK6D/HP-1EUL Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring a compact M18 diffuse housing, these sensors offer both digital and analogue outputs, making them versatile for various applications. With a nominal sensing distance of 1200mm and a minimum sensing distance of 80mm, they provide accurate detection with a resolution of ?3mm and a beam angle of 8° ± 2°. The sensors are equipped with a teach-in button for easy sensitivity adjustment and have a repeat accuracy of 0.50%.
Constructed with AISI316L stainless steel, the sensors are robust and durable, suitable for harsh environments with an operating temperature range of -20°C to +70°C. They are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring reliable operation. The sensors feature LED indicators for easy status monitoring and have a switching frequency of 5Hz with a response time of 400ms.
With an IP67 degree of protection, these sensors are resistant to dust and water ingress, making them ideal for industrial applications. They come with an M12 plug connection and are supplied with two nuts and washers for secure installation. Approved by CE and cULus, the Datasensing UK6D/HP-1EUL Sensors meet international standards for safety and performance.
- Nominal sensing distance:
- 1200mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 80mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 5Hz
- Response time:
- 400ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 80g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
