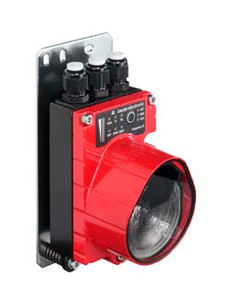

Leuze DDLS 200/120.1-50-M12 Optical data transmission
Leuze
$8,141.00
The Leuze DDLS 200/120.1-50-M12 is an optical data transmitter from the DDLS 200 series, designed for reliable transmission over CANopen and DeviceNet interfaces with baud rates from 125500 kBit/s and up to 1 MBit/s. It operates with infrared LED light source, parallel light axes configuration (1° usable opening angle), and a working range of 0.2120 m, powered by 1830 VDC with current consumption ?200 mA (without heating). The aluminum die-cast housing (90 x 190 x 120 mm, ~1200 g) provides IP65 protection, operates from -5°C to +50°C (or -30°C to +50°C with optional heating), and features M12 5-pin connectors for electrical connections, membrane buttons for mode changes, LED indicators for status and receive level, plus a PNP warning output.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ddls-200-120.1-50-m12/50113046technical-data
- Installation Instructions: https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200-with-2-mbit-s-transmission-ratemanuals
- Product Catalog Page: https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200-with-2-mbit-s-transmission-rate
- CAD Drawings: https://www.leuze.com/en-us/ddls-200-120.1-50-m12/50113046cad
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 120,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F1
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- CANopen, DeviceNet
- Transmission speed:
- 10 ... 1,000 kBit/s
- Transmission speed:
- 125 ... 500 kBit/s
- Number of connections:
- 3 Piece(s)
- Designation on device:
- BUS IN
- Designation on device:
- BUS OUT
- Type:
- Female
- Designation on device:
- PWR
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
