Leuze DDLS 200/120.2-10-M12 Optical data transmission
Leuze
$4,158.00

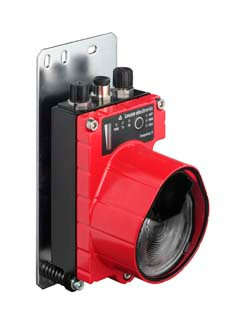

The Leuze DDLS 200/120.2-10-M12 is an optical data transmitter from the DDLS 200 series, designed for reliable wireless data transmission over distances of 0.2 to 120 meters using parallel light axes with infrared LED light source. It operates on a supply voltage of 1830 VDC, features an M12 5-pin connector, a usable opening angle of 1° on the transmitter, and transmission frequency F2, ensuring performance unaffected by reflective surfaces. Pre-mounted on a mounting plate, it suits applications in manufacturing and automation requiring robust, non-contact data transfer between moving and stationary components.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ddls-200-120.2-10-m12/50106024
- Product Catalog Page: https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200
- Installation Instructions: https://www.leuze.com/en-us/support/downloads/ddls-200-120.2-10-m12-installation-guide
- CAD Data: https://www.leuze.com/en-us/cad-data/ddls-200-120.2-10-m12
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 120,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F2
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- PROFIBUS DP, RS 485
- Transmission speed:
- 0.0096 ... 1.5 Mbit/s
- Number of connections:
- 3 Piece(s)
- Designation on device:
- BUS IN
- Designation on device:
- Bus OUT
- Type:
- Female
- Designation on device:
- PWR
- Encoding:
- A-coded
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
