Dynapar HS35IQPROGRH3P2PR1 HS35iQ Encoder with PulseIQ Technology
Dynapar
$2,057.40

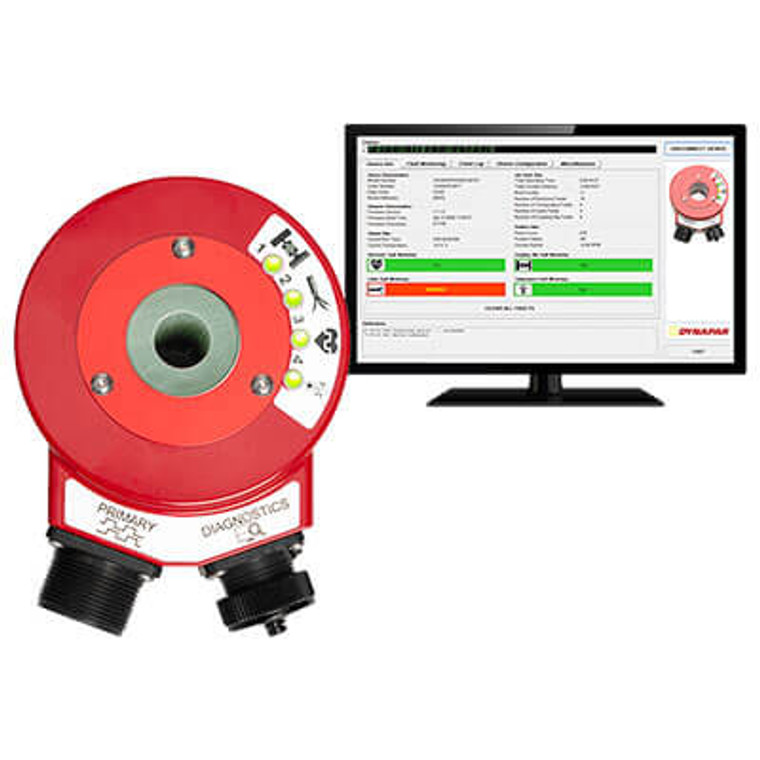

The Dynapar HS35iQ PROGRH3P2PR1 is a heavy-duty hollow-shaft incremental optical encoder featuring PulseIQ Technology for real-time fault forewarning, including signal quality, low voltage, over/under temperature, cable integrity, shaft slip, and overspeed detection via onboard LEDs and digital fault outputs (TTL or HTL). It delivers two-channel quadrature (A/B) outputs with optional index (Z), programmable resolution from 1 to 20,000 PPR (factory default 1,024 PPR), 5-26 VDC input power, 200 kHz frequency response, and squarewave signals with <1 µs rise/fall times. Rated for industrial environments with IP67 enclosure (IP64 at >5000 RPM), -40 to +100°C storage temperature, 400g shock, 20g vibration (5-3000 Hz), and EN61326-1 noise immunity, it suits demanding applications like factory automation, elevators, and off-highway vehicles via clamp collar mounting on machine shafts.
Documentation
- Technical Datasheet: https://www.dynapar.com/hubfs/uploadedFiles/_site_root/Products_and_Solutions/HS35iQ-Datasheet-703409-0001.pdf
- Installation Manual: https://www.dynapar.com/hubfs/uploadedFiles/_site_root/Products_and_Solutions/HS35iQ-Installation-Manual-703409-0002.pdf
- Product Brochure: https://www.dynapar.com/hubfs/uploadedFiles/_site_root/Products_and_Solutions/703424-0001-HS35iQ-Encoder-Brochure.pdf
- Product Page: https://www.dynapar.com/en/products-and-solutions/incremental-encoders/hs35iqprog/part-details/HS35IQPROGRH3P2PR1
- Series:
- HS35IQ
- Average leadtime:
- 0 Business Days
- Weight (Pounds):
- 5.3
- Datasheet:
- View
