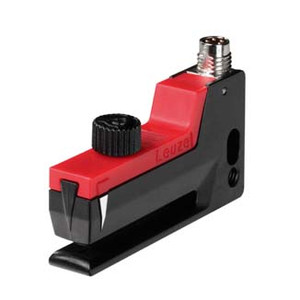

Leuze GS 61/6D.2-S8V Fork photoelectric sensor
Leuze
$364.64
GS 61/6D.2-S8V Fork photoelectric sensor
- Series:
- 61
- Principle of physics:
- Optical
- Application:
- Detection of non-transparent labels
- Label width, min.:
- 2 mm
- Label gap, min.:
- 2 mm
- Medium:
- Not transparent
- Light source:
- LED, Infrared
- Wavelength:
- 940 nm
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 30 mA
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Digital switching output
- Voltage type:
- DC
- Switching current, max.:
- 100 mA
- Switching voltage:
- high: ?(UB-2V),low: ? 2 V
- Switching element:
- Transistor, Push-pull
- Switching principle:
- Switching signal on label
- Switching frequency:
- 10,000 Hz
- Response time:
- 0.05 ms
- Readiness delay:
- 300 ms
- Max. conveyor speed during teach-in:
- 20 m/min
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M8
- Type:
- Male
- Material:
- Metal
- No. of pins:
- 4 -pin
- Plug outlet:
- Vertical (perpendicular to belt movement)
- Design:
- Fork
- Mouth width:
- 3 mm
- Mouth depth:
- 41 mm
- Dimension (W x H x L):
- 11 mm x 30 mm x 60 mm
- Housing material:
- Plastic
- Plastic housing:
- PC
- Lens cover material:
- Plastic/PC
- Net weight:
- 20 g
- Housing color:
- Black, RAL 9005,Red, RAL 3000
- Type of fastening:
- Mounting thread,Through-hole mounting,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 3 Piece(s)
- Operational controls:
- Teach button
- Ambient temperature, operation:
- -20 ... 60 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270909
- ECLASS 8.0:
- 27270909
- ECLASS 9.0:
- 27270909
- ECLASS 10.0:
- 27270909
- ECLASS 11.0:
- 27270909
- ECLASS 12.0:
- 27270909
- ECLASS 13.0:
- 27270909
- ECLASS 14.0:
- 27270909
- ECLASS 15.0:
- 27270909
- ETIM 5.0:
- EC002720
- ETIM 6.0:
- EC002720
- ETIM 7.0:
- EC002720
- ETIM 8.0:
- EC002720
- ETIM 9.0:
- EC002720
- ETIM 10.0:
- EC002720
- Datasheet:
- View
- Declaration of Conformity:
- View
