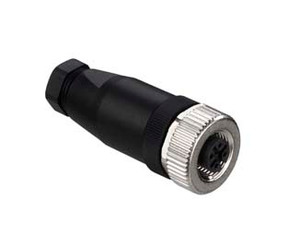

KD 01-8-BA Connector
- Operating voltage:
- 30 V DC
- Rated operating current:
- 1,500 mA
- Number of connections:
- 1 Piece(s)
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Female
- Material:
- Metal
- Handle body material:
- Plastic
- No. of pins:
- 8 -pin
- Encoding:
- A-coded
- Version:
- Axial
- Lock:
- Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking
- Type of connection:
- Screw terminal
- Connection cross sections:
- 0.14 ... 0.5 mm²
- AWG:
- 26 ... 20
- Width across flats:
- 18 mm
- Max. cable hole:
- 6 ... 8 mm
- Ambient temperature, operation:
- -40 ... 85 °C
- Degree of contamination:
- 3, EN 60947-1
- Degree of protection:
- IP 67
- Customs tariff number:
- 85369010
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27440102
- ECLASS 9.0:
- 27069190
- ECLASS 10.0:
- 27440102
- ECLASS 11.0:
- 27440102
- ECLASS 12.0:
- 27440116
- ECLASS 13.0:
- 27440116
- ECLASS 14.0:
- 27440116
- ECLASS 15.0:
- 27440116
- ETIM 5.0:
- EC002635
- ETIM 6.0:
- EC002635
- ETIM 7.0:
- EC002635
- ETIM 8.0:
- EC002635
- ETIM 9.0:
- EC002635
- ETIM 10.0:
- EC002635
- Datasheet:
- View
