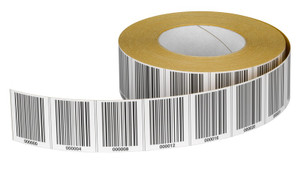

Leuze BCB G30 H47 L010 Bar code tape
Leuze
$244.00
The Leuze BCB G30 H47 L010 is a standard bar code tape designed for precise positioning in industrial automation systems. It features a grid dimension of 30 mm, tape height of 47 mm, and length of 10,000 mm (10 m), constructed from a durable, self-adhesive plastic material offering high wear resistance, moisture resistance, partial chemical resistance, and suitability for application in straight lines, curves, and radii. Compatible with Leuze BPS 8 series, BPS 300i series, and FBPS 600i series bar code positioning systems, it enables millimeter-accurate position detection over extended travel paths up to 10 km when combined in series, supporting traverse rates up to 10 m/s and resolutions from 0.01 mm in demanding manufacturing, conveyor, and mechanical engineering applications.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/bcb-g30-h47-l010/50104792
- Product Family Catalog: https://www.leuze.com/en-int/products/accessories/bar-code-tapes/standard-tapes
- BPS 8 Series Installation Guide: https://www.leuze.com/en-us/products/bar-code-positioning-systems/bps-8-series
- CAD Data: https://www.leuze.com/en-us/bcb-g30-h47-l010/50104792downloads
- Type:
- Standard tape
- Suitable for:
- BPS 8 series bar code positioning system,BPS 300i series bar code positioning system,FBPS 600i series bar code positioning system
- Dimension (H x L):
- 47 mm x 10,000 mm
- Grid dimension:
- 30 mm
- Mechanical properties:
- Moisture resistant,Partly chemical resistant,Scratch resistant,UV resistant,Wipe resistant
- Adhesive:
- Acrylate adhesive
- Strength of adhesive:
- 0.1 mm
- Manufacturing process:
- Digital printing
- Chemical resistance (at 23 °C over 24 h):
- Diesel oil,Heptane,White spirit
- Curing:
- 72 h
- Surface protection:
- Polyester, matt
- Ambient temperature, operation:
- -40 ... 120 °C
- Processing temperature:
- 0 ... 45 °C
- Recommended processing temperature:
- 10 ... 25 °C
- Resistance:
- Humidity,Salt spray fog (150 h/5 %),UV light
- Property of base:
- Clean,Dry,Free of grease,Smooth
- Customs tariff number:
- 48211010
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27280192
- ECLASS 10.0:
- 27280192
- ECLASS 11.0:
- 27280192
- ECLASS 12.0:
- 27280192
- ECLASS 13.0:
- 27280192
- ECLASS 14.0:
- 27280192
- ECLASS 15.0:
- 27280192
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
