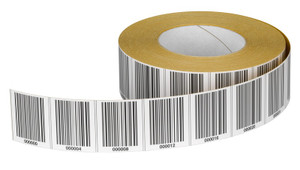

Leuze BCB G40 H25 L020 Bar code tape
Leuze
$368.00
The Leuze BCB G40 H25 L020 is a standard self-adhesive barcode tape designed for precise positioning in barcode positioning systems such as the BPS 300i and BPS 8 series. It features a 40 mm grid dimension (G40), 25 mm tape height (H25), and 20 m length (L020), enabling millimeter-accurate position detection over extended distances up to 10 km when combined in series. The durable plastic material offers high resistance to wear, environmental influences, moisture, chemicals, and scratches, supporting easy application in straight lines, curves, or radii for mechanical engineering and automation applications.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/bcb-g40-h25-l020/50144191
- Product Page: https://www.leuze.com/en-us/products/accessories/bar-code-tapes/standard-tapes
- CAD Data: https://cad.leuze.com/en/BCB-G40-H25-L020
- Installation Guide: https://www.leuze.com/en-us/support/downloads/manuals/bcb-standard-tapes
- Type:
- Standard tape
- Suitable for:
- BPS 300i series bar code positioning system
- Dimension (H x L):
- 25 mm x 20,000 mm
- Grid dimension:
- 40 mm
- Mechanical properties:
- Moisture resistant,Partly chemical resistant,Scratch resistant,UV resistant,Wipe resistant
- Adhesive:
- Acrylate adhesive
- Strength of adhesive:
- 0.1 mm
- Manufacturing process:
- Digital printing
- Chemical resistance (at 23 °C over 24 h):
- Diesel oil,Heptane,Transformer oil,White spirit
- Curing:
- 72 h
- Surface protection:
- Polyester, matt
- Ambient temperature, operation:
- -40 ... 120 °C
- Processing temperature:
- 0 ... 45 °C
- Recommended processing temperature:
- 10 ... 25 °C
- Resistance:
- Humidity,Salt spray fog (150 h/5 %),UV light
- Temperature resistance:
- -40 ... 120 °C
- Property of base:
- Clean,Dry,Free of grease,Smooth
- Customs tariff number:
- 48211010
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27280192
- ECLASS 10.0:
- 27280192
- ECLASS 11.0:
- 27280192
- ECLASS 12.0:
- 27280192
- ECLASS 13.0:
- 27280192
- ECLASS 14.0:
- 27280192
- ECLASS 15.0:
- 27280192
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
