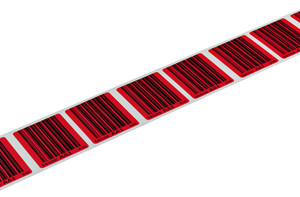

Leuze BCB G40 H47 ML F Marker labels
Leuze
$199.00
The Leuze BCB G40 H47 ML F marker labels are digitally printed positioning markers designed for integration with the BPS 300i series barcode positioning system. Each label measures 47 mm (H) 40 mm (L) with a 40 mm grid dimension and utilizes FF1 encoding for reliable optical recognition. The markers feature acrylate adhesive (0.1 mm strength) applied to a polyester matt surface, providing durability across demanding industrial environments. Operating temperature range of -40 to 120 C and resistance to diesel oil, heptane, transformer oil, and white spirit make these labels suitable for automotive, petrochemical, and heavy manufacturing applications. Additional mechanical properties include moisture, scratch, UV, and wipe resistance, with a 72-hour curing time required after application.
Documentation
- [Technical Datasheet](https://www.leuze.com/en-us/downloads/BCB-G40-H47-ML-F-datasheet)
- [Product Family Overview - BCB Series Marker Labels](https://www.leuze.com/en-us/bcb-marker-labels-product-family)
- [Installation and Application Guide](https://www.leuze.com/en-us/downloads/BCB-positioning-markers-installation-guide)
- [2D/3D CAD Data and Technical Drawings](https://www.leuze.com/en-us/downloads/BCB-G40-H47-marker-CAD-files)
- Type:
- Marker labels
- Dimension (H x L):
- 47 mm x 40 mm
- Grid dimension:
- 40 mm
- Encoding:
- FF1
- Mechanical properties:
- Moisture resistant,Partly chemical resistant,Scratch resistant,UV resistant,Wipe resistant
- Adhesive:
- Acrylate adhesive
- Strength of adhesive:
- 0.1 mm
- Manufacturing process:
- Digital printing
- Chemical resistance (at 23 °C over 24 h):
- Diesel oil,Heptane,Transformer oil,White spirit
- Curing:
- 72 h
- Surface protection:
- Polyester, matt
- Ambient temperature, operation:
- -40 ... 120 °C
- Processing temperature:
- 0 ... 45 °C
- Recommended processing temperature:
- 10 ... 25 °C
- Resistance:
- Humidity,Salt spray fog (150 h/5 %),UV light
- Temperature resistance:
- -40 ... 120 °C
- Property of base:
- Clean,Dry,Free of grease,Smooth
- Customs tariff number:
- 48211010
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27280192
- ECLASS 10.0:
- 27280192
- ECLASS 11.0:
- 27280192
- ECLASS 12.0:
- 27280192
- ECLASS 13.0:
- 27280192
- ECLASS 14.0:
- 27280192
- ECLASS 15.0:
- 27280192
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
