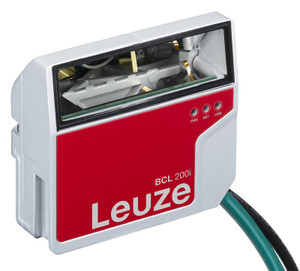

Leuze BCL 248i SM 110 Stationary bar code reader
Leuze
$2,774.00
The Leuze BCL 248i SM 110 is a stationary 1D barcode reader from the BCL 200i series, featuring a line scanner with rotating polygon mirror and lateral beam deflection via deflecting mirror for reliable code reading in constrained spaces. It supports all common 1D codes including Code 128, 2/5 Interleaved, EAN 128, and Code 39, with a scanning rate of 1000 scans/s, reading distance of 40255 mm, and modulus size of 0.20.5 mm using a red laser (655 nm, Class 1 per IEC/EN 60825-1:2014). Electrical specs include 1830 V DC supply (max 4 W), one digital input (max 8 mA), one output (max 60 mA), and PROFINET RT interface via fixed cables (0.9 m PWR/IO M12 A-coded 5-pin, 0.7 m Ethernet M12 D-coded 4-pin); housed in diecast aluminum with IP65 rating and 040°C operation. Key functions encompass AutoConfig, AutoControl, AutoReflAct for reflector activation, code fragment technology, and integrated switch for line wiring, ideal for high-speed conveyor applications with picket-fence or ladder codes.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/bcl-248i-sm-110/50143211technical-data
- Product Page: https://www.leuze.com/en-int/products/identification/stationary-1d-bar-code-readers/compact-scanner/bcl-248i-sm-110/50143211
- Installation Guide: https://www.leuze.com/en-int/support/downloads/bcl-200i-installation-instructions
- GSDML Configuration File: https://www.leuze.com/en-int/support/downloads/bcl-248i-gsdml
- Series:
- BCL 200i
- Functions:
- Alignment mode,AutoConfig,AutoControl,AutoReflAct,Code fragment technology,LED indicator,Reference code comparison
- Code types, readable:
- 2/5 Interleaved,Codabar,Code 39,Code 93,Code 128,EAN 8/13,GS1 Databar Expanded,GS1 Databar Limited,GS1 Databar Omnidirectional,UPC
- Scanning rate, typical:
- 1,000 scans/s
- Bar codes per reading gate, max. number:
- 64 Piece(s)
- Reading distance:
- 40 ... 255 mm
- Light source:
- Laser, Red
- Wavelength:
- 655 nm
- Laser class:
- 1, IEC/EN 60825-1:2014
- Modulus size:
- 0.2 ... 0.5 mm
- Reading method:
- Line scanner with deflecting mirror
- Beam deflection:
- By means of rotating polygon mirror wheel + deflecting mirror
- Light beam exit:
- Lateral with deflecting mirror
- Supply voltage UB:
- 18 ... 30 V, DC
- Power consumption, max.:
- 4 W
- Number of digital switching inputs:
- 1 Piece(s)
- Input current, max.:
- 8 mA
- Number of digital switching outputs:
- 1 Piece(s)
- Switching current, max.:
- 60 mA
- Type:
- PROFINET
- Function:
- Process
- Conformance class:
- B
- Protocol:
- PROFINET RT
- Switch functionality:
- None
- Number of connections:
- 2 Piece(s)
- Function:
- Signal IN,Signal OUT,Voltage supply
- Cable length:
- 900 mm
- Number of conductors:
- 5 -wire
- Type:
- Male
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Function:
- Configuration interface,Data interface
- Cable length:
- 700 mm
- Number of conductors:
- 4 -wire
- Type:
- Female
- No. of pins:
- 4 -pin
- Encoding:
- D-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 93 mm x 38 mm x 83 mm
- Housing material:
- Metal
- Metal housing:
- Diecast aluminum
- Lens cover material:
- Glass
- Net weight:
- 400 g
- Housing color:
- Silver
- Type of fastening:
- Dovetail grooves,Fastening on back,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 3 Piece(s)
- Type of configuration:
- Via web browser
- Ambient temperature, operation:
- 0 ... 40 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 0 ... 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-3
- Test procedure for shock in accordance with standard:
- IEC 60068-2-27, test Ea
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280102
- ECLASS 8.0:
- 27280102
- ECLASS 9.0:
- 27280102
- ECLASS 10.0:
- 27280102
- ECLASS 11.0:
- 27280102
- ECLASS 12.0:
- 27280102
- ECLASS 13.0:
- 27280102
- ECLASS 14.0:
- 27280102
- ECLASS 15.0:
- 27280102
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002550
- ETIM 7.0:
- EC002550
- ETIM 8.0:
- EC002550
- ETIM 9.0:
- EC002550
- ETIM 10.0:
- EC002550
- Datasheet:
- View
- Declaration of Conformity:
- View
