Description

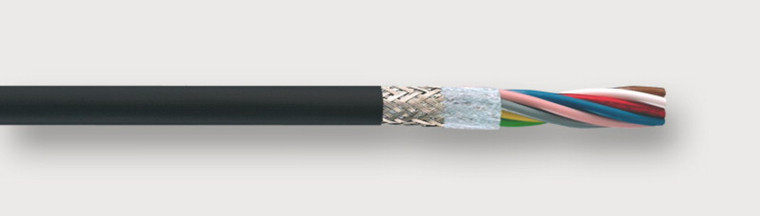

SUPERFLEX???? TRONIC AS (C) PUR
Number of conductors/cross-section
(3?????0.34)
Jacket material
PUR
Jacket color
black RAL 9005
Outer ??
4,8 mm
Outer ??
0,189 inch
Surface
- adhesion-free
- matt
Weight
3,2 kg/100 m
Weight
22 Lbs/Mft
Cu-Index
2 kg/100 m
Cu-Index
13 Lbs/Mft
Element 1
Element construction
(3?????0.34)
Conductor
CU-wire bare
Conductor category
- IEC 60228, Class 6
- Superfinely stranded DIN VDE 0295
- class 6
Conductor marking
- brown
- blue
- black
Conductor marking standard
EN 60947-5-2
Conductor insulation
Special TPE
overall construction
Overall stranding
- conductors layered construction
- layer pitch optimised
- conductors twisted without mechanical stress
Overall wrapping
Fleece taping
Overall shield
- Braid shield
- Tinned copper wires
- optical cover approx. 85%
Jacket characteristics
- low-adhesion
- abrasion resistant
- tough
- tear resistant
- hydrolysis-resistant
- microbe resistant
- rot-resistant
- Weather resistant
- ozone-resistant
- UV resistant (normal lighting conditions)
- service water-resistant
- salt water-resistant
- coolant-resistant
- lubricant-resistant
- Oil resistant
- grease-resistant
- petrol-resistant (alcohol-free)
- kerosene-resistant
- Silicone-free
- Halogen free
Technical data
Rated voltage
300 V
Test voltage type
AC3000V
Temperature according to UL
80 ?????C
Temperature range moving
-20 ?????C ??????? +80 ?????C
Temperature range fixed
-40 ?????C ??????? +80 ?????C
Minimum bending radius moving
12?????D
Minimum bending radius fixed
6?????D
Element 1
Element construction
(3?????0.34)
Insulation resistance at 20 ?????C
100 M?????????km
Approvals/Standards
Approvals
cURus
UL style
AWM 20549
Conformity
- CE
- RoHS
- REACH
Burning behavior according to
- DIN EN 60332-2-2
- UL 1581
- Horizontal Flame Test
- UL FT2
Oil resistant according to
DIN EN 60811-2-1
Halogen free according to
- DIN EN 60754-1
- IEC 60754-1
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Connecting cable for the actuator-sensor technology For continuous flexing use e.g. in c-tracks or free movement in the automation technology, transport and conveyor technology, machine tool manufacture PUR jacket optimally suited for rough operating conditions and aggressive coolants and lubricants
