Description

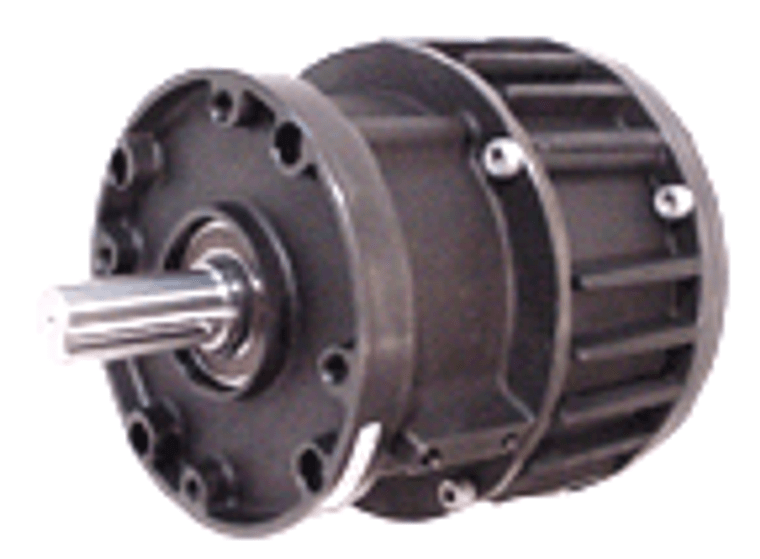

FMCBES Spring Engaged C/B FMCBES-130MM INPUT,.875 OUTPUT,HCO,
View AllClose
| "Special 875 With IEC 130-24 Input Features, Only Input Features Are Metric" | |
| Input Frame Size: | "90S, 90L" |
| Output Frame Size: | "143TC, 145TC" |
| Open Or Enclosed Design: | Enclosed |
| Bore Style: | Straight Bore/Shaft |
| Clutch Facing Type: | High Coefficient |
| Clutch Facing Edge Color Code: | Purple |
| Brake Facing Type: | High Coefficient |
| Brake Facing Edge Color Code: | Purple |
| Combined Continuous Thermal Dissipation: | 0.13 kW |
| Clutch Peak Thermal Input Rate: | 8.90 kW |
| Brake Peak Thermal Input Rate: | 8.90 kW |
| Drive Inertia: | 18.14 kgcm² |
| Shaft Inertia: | 20.78 kgcm² |
| Max Rpm: | 1500 |
| Output Shaft Diameter: | 0.875 in. |
| Actuation/Return: | Air/Spring |
| Port Size: | 0.125 NPT |
| Maximum Operating Pressure: | 6.0 bar |
| Minimum Engagement Pressure: | 3.3 bar |
| Minimum Release Pressure: | 1.9 bar |
| Temperature Range: | 32 - 150 °F |
| Approximate Clutch Facing Life: | 197 hphr |
| Approximate Brake Facing Life: | 146.9 kWhr |
| Clutch Air Chamber Volume When New: | 19.52 cm³ |
| Clutch Air Chamber Volume When Worn Out: | 27.90 cm³ |
| Ratings: | "CE, And RoHS" |
| Finish: | Black Oxide |
| Restrictions: | Consult Nexen For Use In Cyclic Applications |
| Shipping Weight: | 40.0 LB |
