Pfannenberg

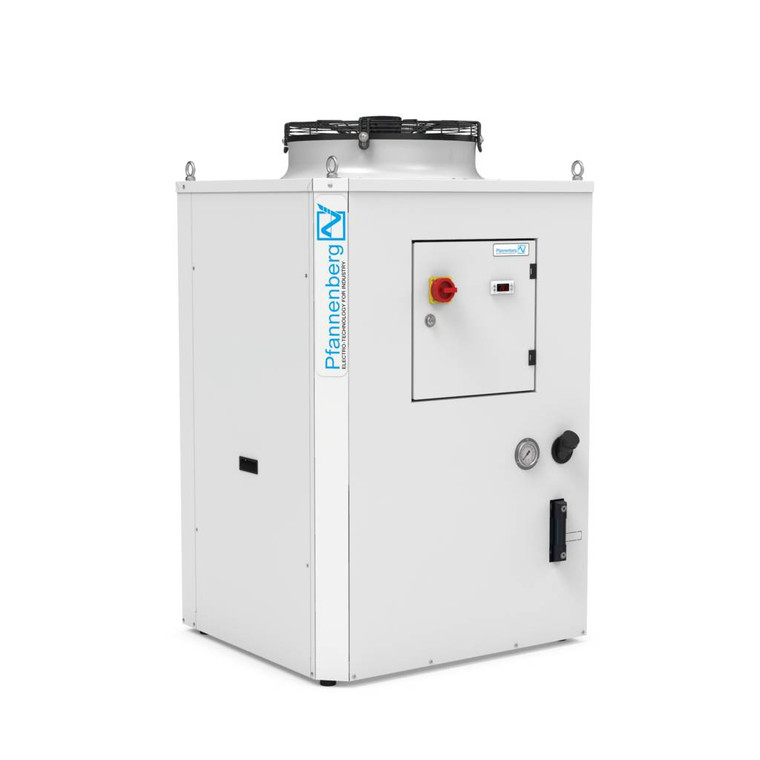

Pfannenberg Eco Eb140 Inverter Type Air Cooled Water Chiller

SKU:

42031405010

UPC:

MPN:

Condition:

New

Cooling Capacity (Btu/h):

47768

Cooling Capacity (kW):

14

COOLING CAPACITY (Tons):

3.98066666666667

Location:

Outdoor

Color:

RAL 7035 (Light Grey)

Material:

Powder Coated Steel

Environmental Protection Standard:

IP 55

Voltages:

400/460 VAC

Voltage Tolerance:

??10%

Frequency (Hz):

50|60

Power Consumption (W):

7200 | 15100

Nominal (Run) Current (@35A/35A):

6.8 | 11.9

Fuse (max.) Class CC:

25

Max Noise Level dB(A):

72

Approvals:

UL 508A, CE, EAC

Dry Weight (lbs):

496

Width (in):

33.68

Height (in):

60.4

Depth (in):

29.96

Minimum Ambient Temperature (??F / ??C):

14/-10

Maximum Ambient Temperature (??F / ??C):

113/45

Tank Volume (Gal):

19

Coolant Connections (NPT-F):

1"
