Schneider Electric

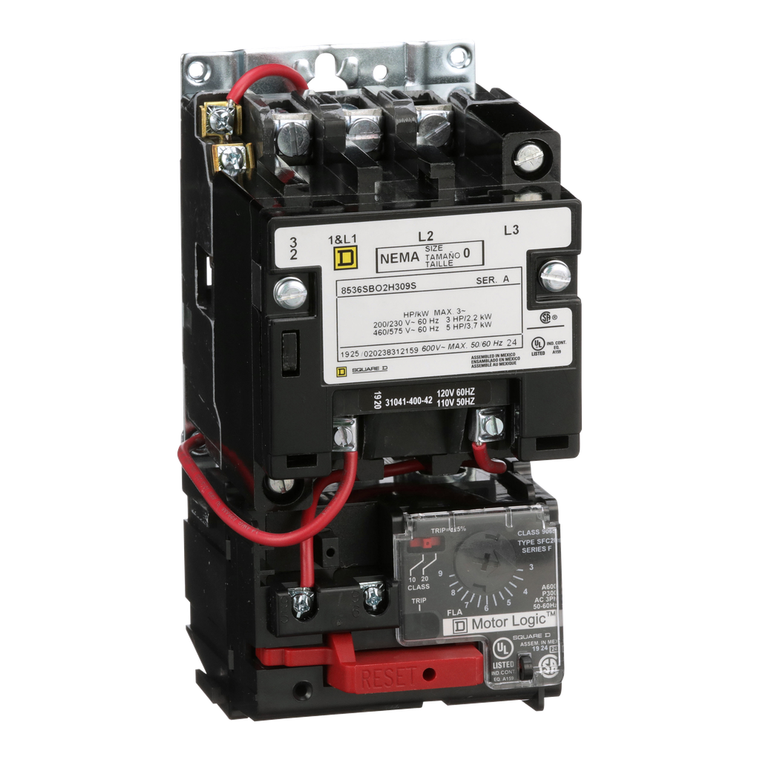

Schneider Electric 8536SBO2V02H309S NEMA motor starter, Type S, nonreversing, Size 0, 18A, 5HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open

(No reviews yet) Write a Review
SKU:
8536SBO2V02H309S
MPN:
8536SBO2V02H309S
Condition:
New
Warranty:
18 months
Nema Size:
0
Line Rated Current:
18 A
Control Type:
no control units
Phase:
3 phase
Pvc Free:
Yes
Depth:
107 mm
Control Circuit:
separate control circuit
Auxiliary Contact Composition:
without
Eu Rohs Directive:
Not compliant
Rated Power In Hp:
3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Thermal Overload Type:
solid state Motor Logic class 10/20
Poles Description:
3P
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nema Degree Of Protection:
not rated (open device)
Product Or Component Type:
motor starter
Local Signaling:
without pilot light
Electrical Connection:
screw clamp terminals
[Ue] Rated Operational Voltage:
600 V AC
Product Certifications:
UL Listed || CSA || NEMA
Range Of Product:
S
Motor Starter Type:
non reversing
Country of Origin:
United States
$578.00

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 3A to 9A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/220 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
