Schneider Electric

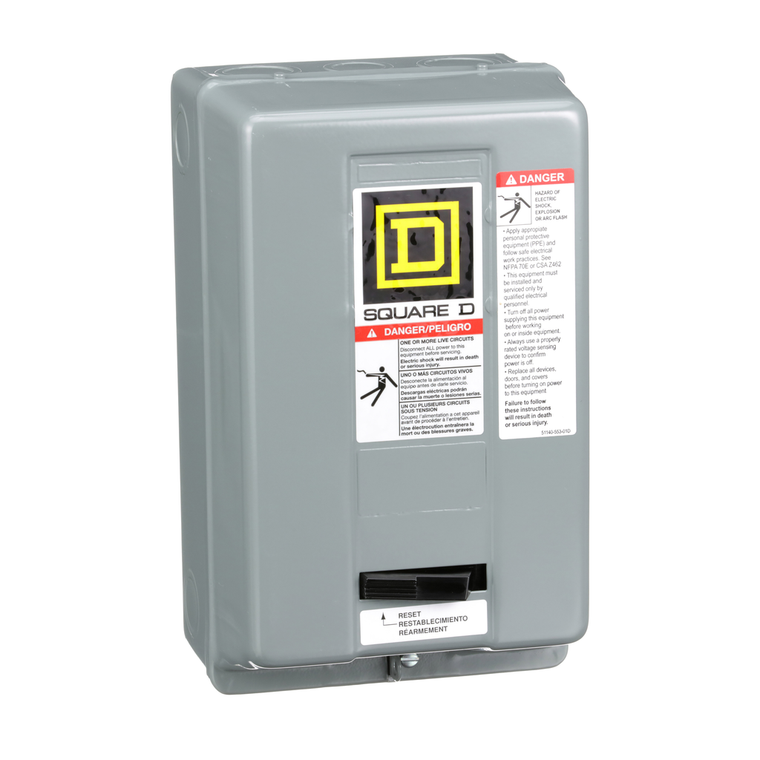

Schneider Electric 8536SCG3V02H30S NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1

(No reviews yet) Write a Review
SKU:
8536SCG3V02H30S
MPN:
8536SCG3V02H30S
Condition:
New
Depth:
141 mm
Line Rated Current:
27 A
Rated Power In Hp:
7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
Control Circuit:
separate control circuit
Poles Description:
3P
Control Type:
no control units
Nema Degree Of Protection:
NEMA 1 painted sheet steel
Product Certifications:
UL Listed || CSA || NEMA
Range Of Product:
S
Local Signaling:
without pilot light
Motor Starter Type:
non reversing
Product Or Component Type:
motor starter
Eu Rohs Directive:
Not compliant
Thermal Overload Type:
solid state Motor Logic class 10/20
Nema Size:
1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Country of Origin:
Mexico
Electrical Connection:
screw clamp terminals
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
Auxiliary Contact Composition:
without
[Ue] Rated Operational Voltage:
600 V AC
Pvc Free:
Yes
Warranty:
18 months
Phase:
3 phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
$683.00

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
