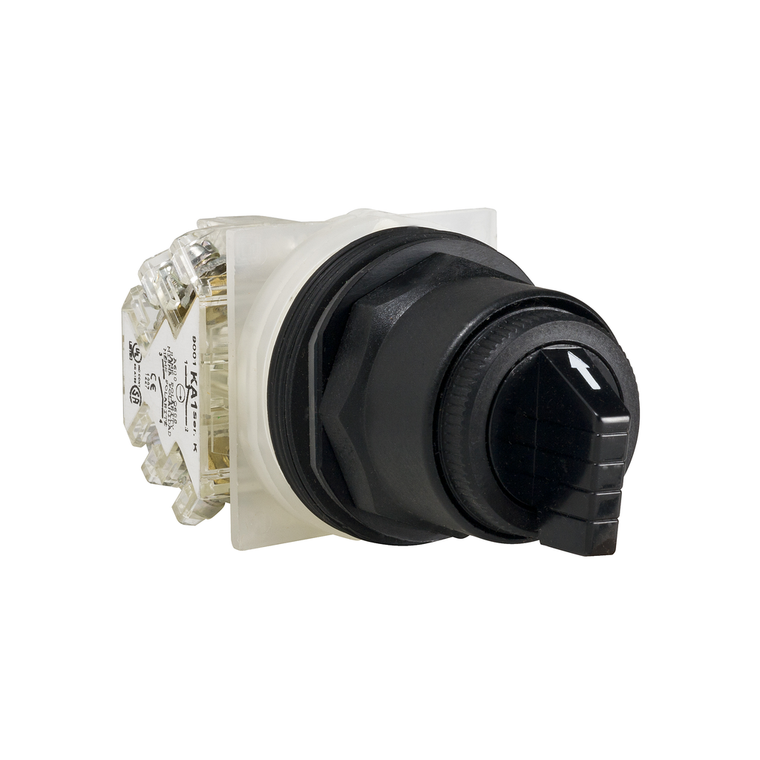

Schneider Electric 9001SKS47BH2 Selector Switch 600Vac 10A 30Mm Sk
SKU:
9001SKS47BH2
UPC:
7.85902E+11
MPN:
Condition:
New
Electrical Shock Protection Class:
class II IEC 61140
Range Of Product:
Harmony 9001SK
Cap/Operator Or Lens Colour:
black
Type Of Operator:
stay put
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Ambient Air Temperature For Operation:
-25-70 °C
Ip Degree Of Protection:
IP66 IEC 60529
Size:
30 mm
China Rohs Regulation:
X
Device Short Name:
9001SK
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Toxic Heavy Metal Free:
Yes
Bezel Material:
plastic
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Device Presentation:
complete product
Ambient Air Temperature For Storage:
-40-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Protective Treatment:
TC
Contacts Type And Composition:
2 C/O
Operator Profile:
standard handle
Cam Profile:
7
Circularity Profile:
N/A
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP120820EN
Reach Free Of Svhc:
Yes
Product Or Component Type:
selector switch
Sustainable Offer Status:
Green Premium product
Product Certifications:
UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
Warranty:
18 months
Mounting Diameter:
30 mm
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust...
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas,...
This Harmony 9001SK, black selector switch with long handle and C cam has 3 positions, operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals and...
This Harmony 9001SK, black selector switch with long handle and E cam has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals...
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas,...
