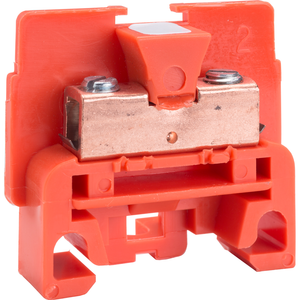

Schneider Electric 9080GA6 Terminal Block 600V 40Amp Nema +Options Pack of 50

(No reviews yet) Write a Review
SKU:
9080GA6
UPC:
785901154952
Condition:
New
Ambient Air Temperature For Operation:
-40-257 °F
Warranty:
18 months
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mercury Free:
Yes
Electrical Connection:
ring tongue
Mounting Support:
9080GH track || 35 mm DIN rail
Range Of Product:
9080G
Height:
1.48 in
Color:
natural
Awg Gauge:
AWG 22...AWG 12 copper
Reach Free Of Svhc:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive:
Compliant
Localisation On Device:
standard
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Width:
1.8 in
Depth:
0.37 in
[Ue] Rated Operational Voltage:
600 V AC/DC
Number Of Terminal Blocks:
32 per foot
Product Or Component Type:
terminal block
Protection Type:
fingersafe DIN 57470
Quantity Per Set:
set of 50
Product Compatibility:
GP6B
Line Rated Current:
40-40 A UL || 40-40 A CSA
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Connections - Terminals:
screw terminal zinc plated steel 18-20 lbf.in : AWG 22...AWG 12 copper)
Product Certifications:
CE || UL recognized E60616 CCN XCFR2 || CSA file 62144 class 6228 01
Catalog:
View
Datasheet:
View
  • Schneider Electric 9080GA6 Terminal Block 600V 40Amp Nema +Options Pack of 50
  • Schneider Electric 9080GA6 Terminal Block 600V 40Amp Nema +Options Pack of 50
  • Schneider Electric 9080GA6 Terminal Block 600V 40Amp Nema +Options Pack of 50
$90.00

Description

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a flat terminal connector for use with wires that have ring or spade connectors on the end of the wires. Solid or stranded copper wires from #22 through #12 AWG can be used with this terminal block. Each terminal is approved for use with 1 or 2 #12 wires, 1 or 2 #14 wires, 1 or 2 #16 wires, 1 or 2 #18 wires, 1 or 2 #20 wires, or 1 or 2 #22 wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 40 Amps and up to 600 VAC or VDC.
