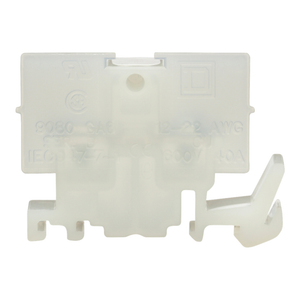

Schneider Electric 9080GK6 Terminal Block 600V 40Amp Nema +Options Pack of 50

Schneider Electric 9080GK6 Terminal Block 600V 40Amp Nema +Options Pack of 50

Schneider Electric
SKU:
9080GK6
|
UPC:
785901000822
$120.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
Additional Information
Ambient Air Temperature For Operation:
-40-257 °F
Color:
natural
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Awg Gauge:
AWG 22...AWG 10 copper
Mounting Support:
9080GH track || panel
Product Certifications:
CSA file 62144 class 6228 01 || CE || UL recognized E60616 CCN XCFR2
Width:
1.4 in
Product Compatibility:
GK6B
Product Or Component Type:
terminal block
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Compliant
Localisation On Device:
standard
Height:
1.39 in
Range Of Product:
9080G
Depth:
0.35 in
[Ue] Rated Operational Voltage:
600 V AC/DC
Pvc Free:
Yes
Quantity Per Set:
set of 50
Reach Free Of Svhc:
Yes
Connections - Terminals:
lug copper 11-12 lbf.in : AWG 22...AWG 10 copper)
Line Rated Current:
40-40 A CSA || 70-70 A UL
Mercury Free:
Yes
Number Of Terminal Blocks:
35 per foot
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Electrical Connection:
copper box lugs
Catalog:
View
Datasheet:
View
