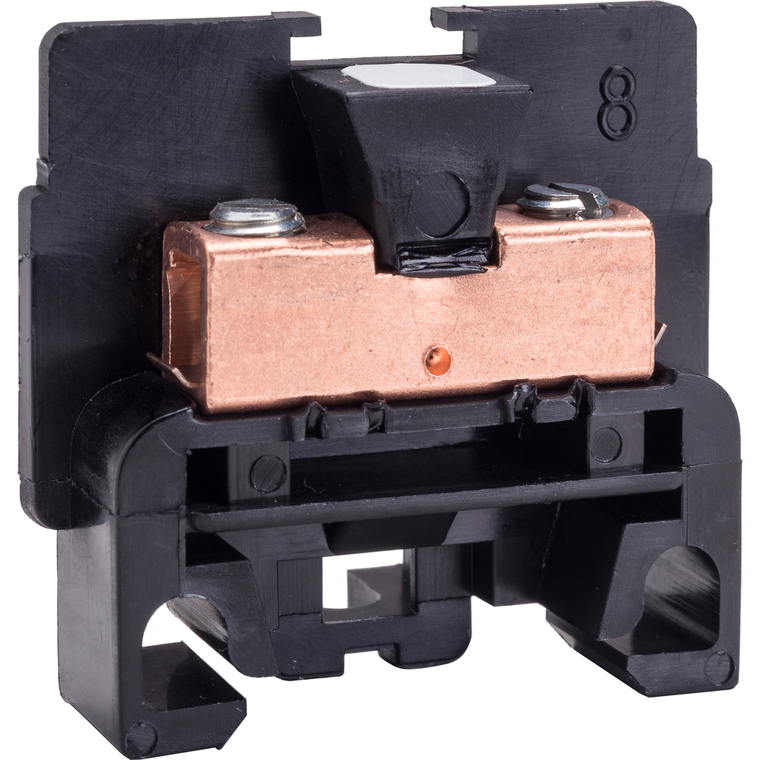

Schneider Electric 9080GKB6 Terminal Block 600V 40Amp Nema +Options Pack of 50

(No reviews yet) Write a Review
SKU:
9080GKB6
UPC:
7.85902E+11
Condition:
New
Product Certifications:
CSA file 62144 class 6228 01 || CE || UL recognized E60616 CCN XCFR2
Number Of Terminal Blocks:
35 per foot
Toxic Heavy Metal Free:
Yes
Width:
1.4 in
Height:
1.39 in
Product Compatibility:
GK6B
Depth:
0.35 in
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Awg Gauge:
AWG 22...AWG 10 copper
Mercury Free:
Yes
Reach Free Of Svhc:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-40-257 °F
Connections - Terminals:
lug copper 11-12 lbf.in : AWG 22...AWG 10 copper)
Eu Rohs Directive:
Compliant
Line Rated Current:
40-40 A CSA || 70-70 A UL
Quantity Per Set:
set of 50
Localisation On Device:
standard
Color:
Black
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Support:
panel || 9080GH track
Electrical Connection:
copper box lugs
Range Of Product:
9080G
Pvc Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC/DC
Product Or Component Type:
terminal block
  • Schneider Electric 9080GKB6 Terminal Block 600V 40Amp Nema +Options Pack of 50
  • Schneider Electric 9080GKB6 Terminal Block 600V 40Amp Nema +Options Pack of 50
$120.00

Description

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
