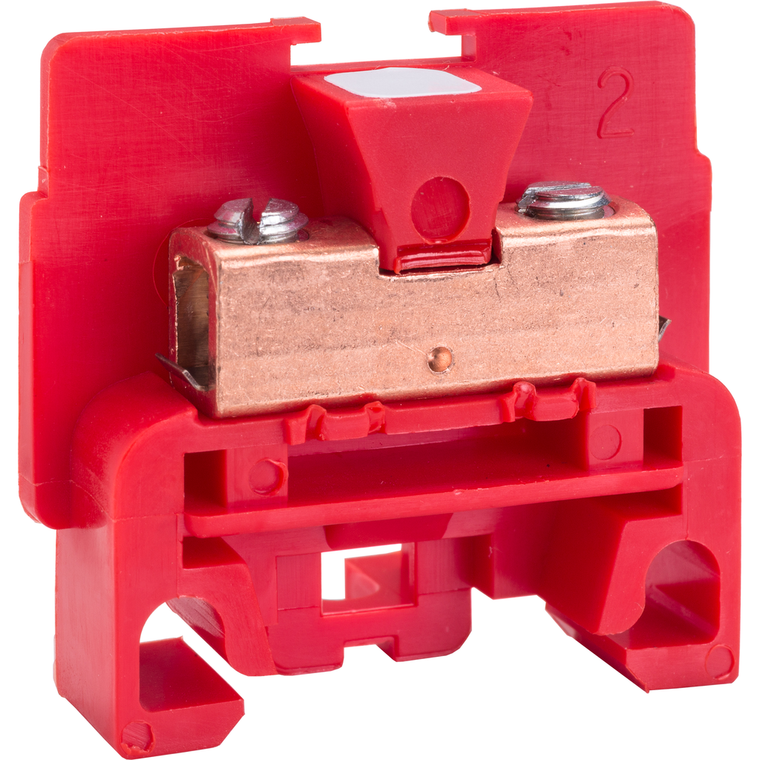

Schneider Electric 9080GKR6 Terminal Block 600V 40Amp Nema +Options Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in red. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Quantity Per Set:
- set of 50
- Rohs Exemption Information:
- Yes
- Height:
- 1.39 in
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-257 °F
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Toxic Heavy Metal Free:
- Yes
- Electrical Connection:
- copper box lugs
- Range Of Product:
- 9080G
- Line Rated Current:
- 40-40 A CSA || 70-70 A UL
- Mounting Support:
- panel || 9080GH track
- Product Compatibility:
- GK6B
- Localisation On Device:
- standard
- Mercury Free:
- Yes
- Awg Gauge:
- AWG 22...AWG 10 copper
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Certifications:
- CE || CSA file 62144 class 6228 01 || UL recognized E60616 CCN XCFR2
- Warranty:
- 18 months
- Connections - Terminals:
- lug copper 11-12 lbf.in : AWG 22...AWG 10 copper)
- Number Of Terminal Blocks:
- 35 per foot
- Eu Rohs Directive:
- Compliant
- Reach Free Of Svhc:
- Yes
- Depth:
- 0.35 in
- Product Or Component Type:
- terminal block
- Width:
- 1.4 in
- Pvc Free:
- Yes
- Color:
- Red
