Schneider Electric 9080GR6 Terminal Block 600V 60Amp Nema +Options Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

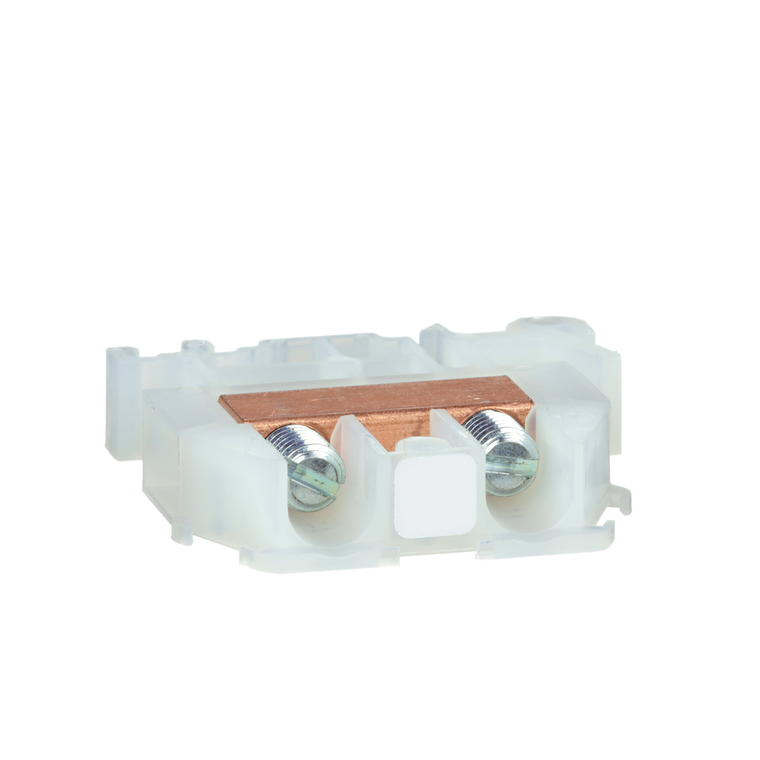

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
- Pvc Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant
- Reach Free Of Svhc:
- Yes
- Number Of Terminal Blocks:
- 34 per foot
- Protection Type:
- fingersafe DIN 57470
- Color:
- natural
- Depth:
- 0.35 in
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Or Component Type:
- terminal block
- Connections - Terminals:
- lug copper 18-20 lbf.in : AWG 22...AWG 8 copper)
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Awg Gauge:
- AWG 22...AWG 8 copper
- Quantity Per Set:
- set of 50
- Mounting Support:
- 35 mm DIN rail || 9080GH track
- Width:
- 1.72 in
- Electrical Connection:
- copper box lugs
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-257 °F
- Product Compatibility:
- GM6B
- Line Rated Current:
- 60-60 A UL || 60-60 A CSA
- Range Of Product:
- 9080G
- Localisation On Device:
- standard
- Height:
- 1.82 in
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Net Weight:
- 0.01 kg
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- UL recognized E60616 CCN XCFR2 || CE || CSA file 62144 class 6228 01
