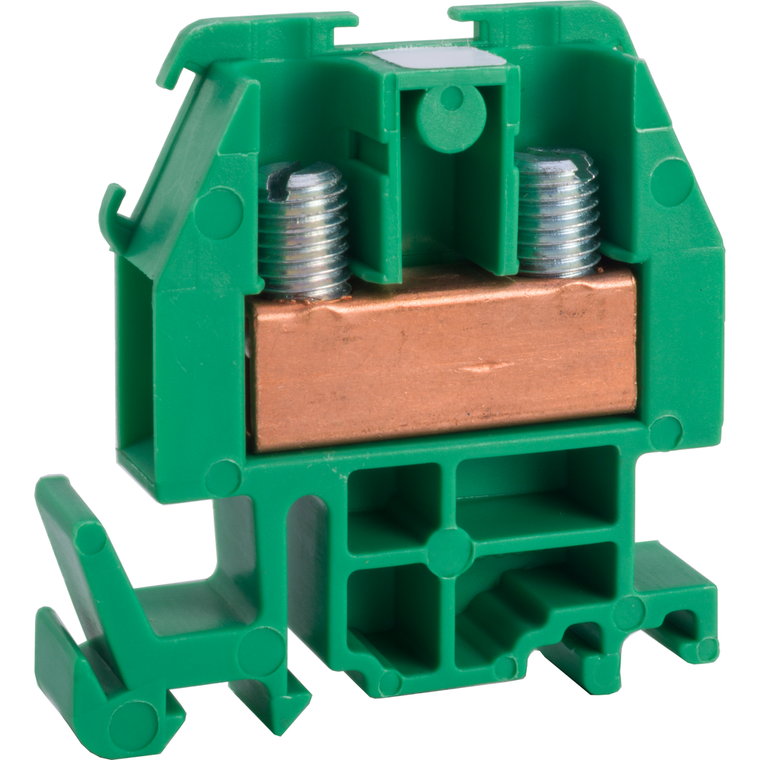

Schneider Electric 9080GRG6 Terminal Block 600V 60Amp Nema +Options Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9080GRG6 Terminal Block 600V 60Amp Nema +Options Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9080GRG6

UPC:

785901917489

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Operation:

-40-257 °F

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Line Rated Current:

60-60 A UL || 60-60 A CSA

Depth:

0.35 in

Number Of Terminal Blocks:

34 per foot

Rohs Exemption Information:

Yes

Product Certifications:

CE || UL recognized E60616 CCN XCFR2 || CSA file 62144 class 6228 01

Electrical Connection:

copper box lugs

Range Of Product:

9080G

Localisation On Device:

standard

Quantity Per Set:

set of 50

Width:

1.72 in

Product Or Component Type:

terminal block

Warranty:

18 months

Product Compatibility:

GM6B

Awg Gauge:

AWG 22...AWG 8 copper

Protection Type:

fingersafe DIN 57470

Toxic Heavy Metal Free:

Yes

Mounting Support:

35 mm DIN rail || 9080GH track

Height:

1.82 in

Connections - Terminals:

lug copper 18-20 lbf.in : AWG 22...AWG 8 copper)

[Ue] Rated Operational Voltage:

600 V AC/DC

Mercury Free:

Yes

Pvc Free:

Yes

Color:

Green

Eu Rohs Directive:

Compliant

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)
