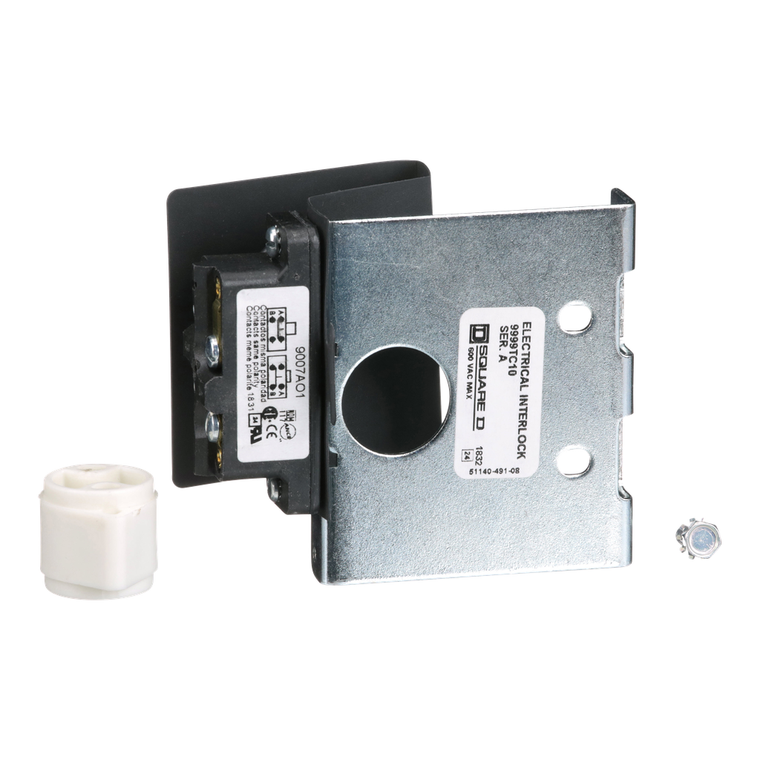

Schneider Electric 9999TC10 Disconnect mechanism, flange mounted, disconnect switch auxiliary contact kit, 15A, 1 pole, SPDT

Schneider Electric 9999TC10 Disconnect mechanism, flange mounted, disconnect switch auxiliary contact kit, 15A, 1 pole, SPDT

Schneider Electric
SKU:
9999TC10
$120.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. Contact modules are UL component recognized.
Additional Information
Range Compatibility:
Square D Disconnect Switch
Depth:
1.44 in
Product Or Component Type:
interlock
Weight:
.23 kg
Device Application:
control
Country of Origin:
Mexico
[Ie] Rated Operational Current:
15 A120 V AC 50/60 Hz || 15 A240 V AC 50/60 Hz || 15 A480 V AC 50/60 Hz || 15 A600 V AC 50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Net Weight:
.23 kg
Range:
Square D
Eu Rohs Directive:
Under investigation
