Schneider Electric A9XPH224 Acti9 Comb Busbar 2P 100A 24 Modules Pack of 5

Schneider Electric A9XPH224 Acti9 Comb Busbar 2P 100A 24 Modules Pack of 5

Schneider Electric
SKU:
A9XPH224
|
UPC:
3606480485039
$337.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

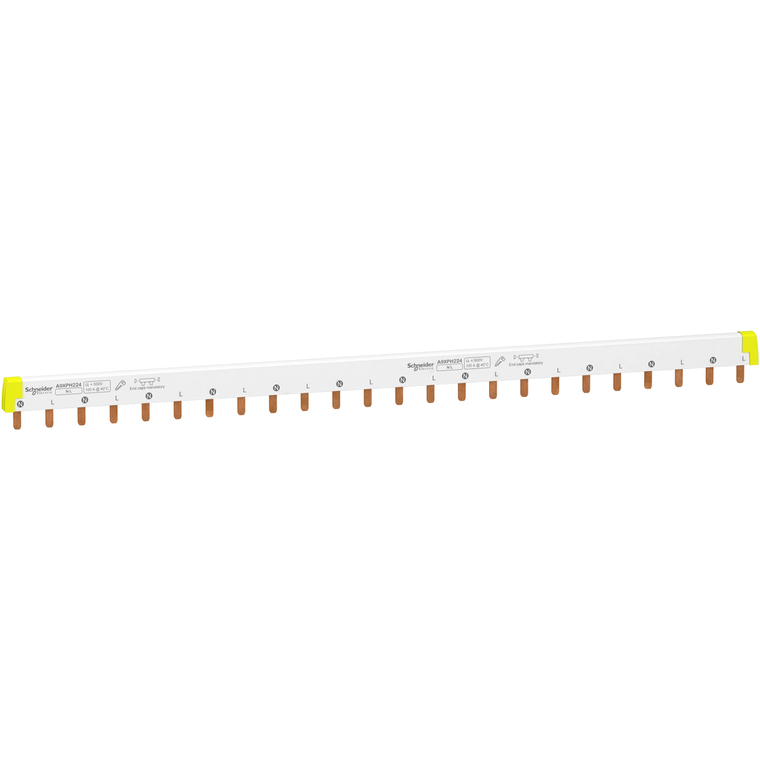

This Acti9 product is a cuttable horizontal comb busbar 24 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+1L installations. The type is NL (Neutral, Line). It is a set of 1 device. It is suitable for 12 devices (1P+N). The length is 430mm. The total number of modules of 18mm is 24. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 2. The Ie rated operational current at 40°C is 100A The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Additional Information
Sustainable Offer Status:
Green Premium product
Accessory / Separate Part Category:
connection accessory
Circularity Profile:
N/A
Ip Degree Of Protection:
IP20 with end-pieces and tooth covers
Total Number Of 18 Mm Modules:
24
Poles Configuration For 1 Way:
1 x 1P + N || 1 x 2P
Connection Pitch:
18 mm
Lines Description:
1L + N
Connector Type:
tooth
Reach Free Of Svhc:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mounting Mode:
horizontal
Number Of Ways:
12 ways N + 1 L
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Toxic Heavy Metal Free:
Yes
Range Compatibility:
Acti 9 Acti9 iC60 || Acti 9 Acti9 iK60 || Acti 9 Acti9 iID || Acti 9 Acti9 iID K || Acti 9 Acti9 iSW || Acti 9 Acti9 iSW-NA || Multi9 Multi9 C60
Mounting Location:
top or bottom tunnel type terminals || top or bottom double terminal
Color:
White RAL 9003)
Environmental Disclosure:
ENVPEP2005011
9 Mm Pitches:
48
Rohs Exemption Information:
Yes
Range:
Acti9
Mercury Free:
Yes
Marking:
N L
[Ie] Rated Operational Current:
100 A 40 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Insulation:
insulated
[Ui] Rated Insulation Voltage:
500 V AC IEC 61439-2
Standards:
IEC 60947-7-1 || IEC 61439-2
Width:
430 mm
Pollution Degree:
3 IEC 60947-7-1
Distance Between Way:
36 mm
Device Presentation:
cuttable
Warranty:
18 months
Fire Resistance:
960 °C 30 s ) IEC 60695-2-1
[Ue] Rated Operational Voltage:
415 V AC
Eu Rohs Directive:
Compliant
Product Or Component Type:
comb busbar
Brochure:
View
Catalog:
View
Datasheet:
View
