-15-50 °C without derating) || 50-60 °C with derating factor)
Noise Level:
62.4 dB 86/188/EEC
Accuracy:
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Rohs Exemption Information:
Yes
Maximum Thdi:
<48 % from 80...100 % of load IEC 61000-3-12
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu
Communication Port Protocol:
Ethernet || Modbus serial || Modbus TCP
Minimum Switching Current:
relay output R1, R2, R3 5 mA 24 V DC
Prospective Line Isc:
50 kA
Power Dissipation In W:
natural convection 196 W 380 V 2.5 kHz || forced convection 1585 W 380 V 2.5 kHz
Relay Output Number:
3
Vibration Resistance:
1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Data Format:
8 bits, configurable odd, even or no parity
Product Certifications:
ATEX INERIS || TÜV || DNV-GL || UL || ATEX zone 2/22 || CSA
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Isolation:
between power and control terminals
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Horse Power Rating:
125 hp normal duty || 100 hp heavy duty
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s
Motor Slip Compensation:
adjustable || not available in permanent magnet motor law || automatic whatever the load || can be suppressed
1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Maximum Switching Current:
relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2
Discrete Input Logic:
16 preset speeds
Environmental Disclosure:
ENVPEP2007013EN
Continuous Output Current:
173 A 2.5 kHz normal duty || 145 A 2.5 kHz heavy duty
Number Of Addresses:
1-247 Modbus serial
Linearity Error:
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
Analogue Input Number:
3
Quantity Per Set:
1
Product Destination:
asynchronous motors || synchronous motors
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Discrete Output Number:
0
Range Of Product:
Altivar Process ATV600
Supply Frequency:
50...60 Hz - 5...5 %
Analogue Output Number:
2
Noise Level:
62.4 dB
Phase:
3 phase
China Rohs Regulation:
X
Emc Filter:
integrated 50 m IEC 61800-3 category C3 || with EMC plate option
Refresh Time:
relay output R1, R2, R3)5 ms +/- 0.5 ms)
Discrete Input Type:
DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
[Us] Rated Supply Voltage:
380...480 V
Local Signalling:
for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
Maximum Transient Current:
190.3 A 60 s normal duty) || 217.5 A 60 s heavy duty)
building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso
Speed Drive Output Frequency:
0.1-500 Hz
Product Specific Application:
process and utilities
Method Of Access:
slave Modbus TCP
Depth:
307 mm
Assembly Style:
with heat sink
Physical Interface:
Ethernet || 2-wire RS 485
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pollution Degree:
2
Pollution Degree:
2 IEC 61800-5-1
Variant:
standard version
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Type Of Cooling:
forced convection
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

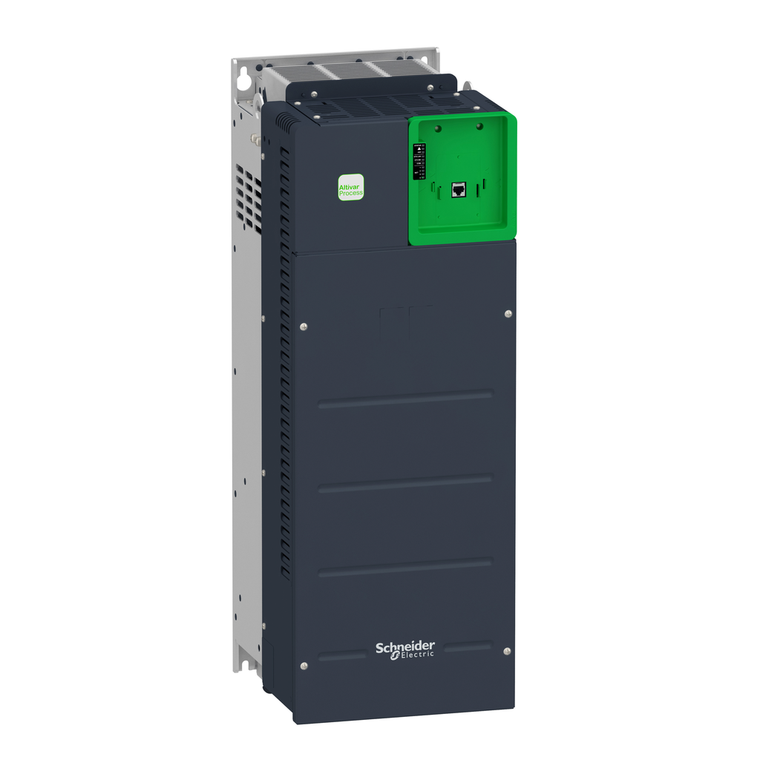

Device Short Name:
ATV630
Braking To Standstill:
by DC injection
Nominal Switching Frequency:
2.5 kHz
Safety Function:
STO (safe torque off) SIL 3
Maximum Output Frequency:
500 kHz
Discrete Output Type:
relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V
Type Of Polarization:
no impedance
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI2007013EN
Ip Degree Of Protection:
IP20IEC 61800-5-1 || IP00 at bottom terminals)IEC 60529
2.5...8 kHz with derating factor || 2...8 kHz adjustable
Synchronous Motor Control Profile:
permanent magnet motor || synchronous reluctance motor
Electrical Connection:
control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 120 mm² AWG 4/0...250 kcmil || motor screw terminal 120 mm² 250 kcmil
Option Card:
slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
Mounting Mode:
cabinet mount
Frequency Resolution:
display unit 0.1 Hz || analog input 0.012/50 Hz
Height:
748 mm
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Operating Position:
vertical +/- 10 degree
Regulation Loop:
adjustable PID regulator
Power Range:
55-100 kW 380-440 V 3 phase || 55-100 kW 480-500 V 3 phase
Supply:
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
Mercury Free:
Yes
Apparent Power:
112.9 kVA 480 V normal duty) || 98.2 kVA 480 V heavy duty)
Discrete Input Number:
8
Connector Type:
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
