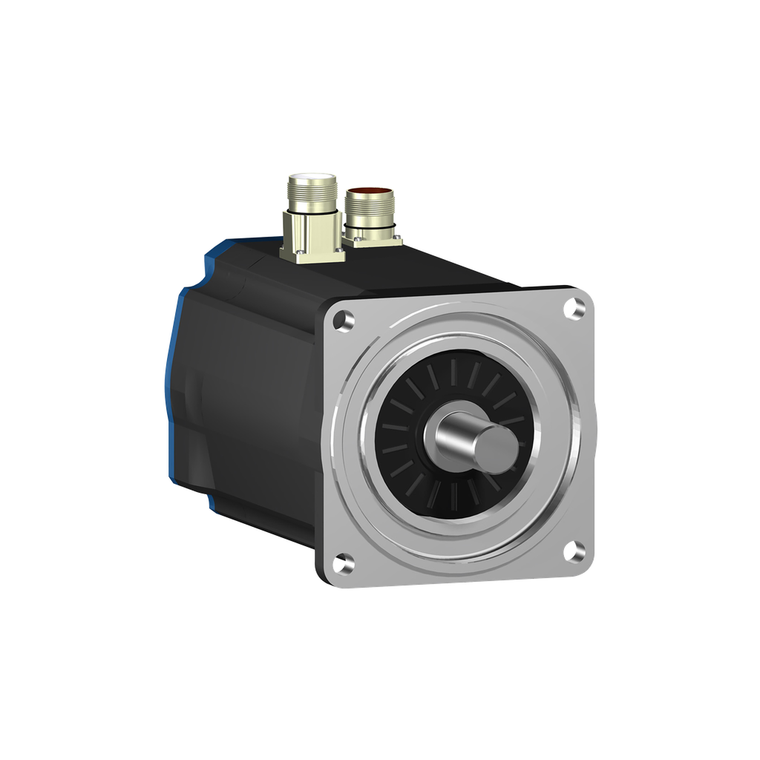

Schneider Electric BSH1403T31F1P AC servo motor BSH, Lexium 32, 27.8N.m, 3000rpm, keyed shaft, with brake, IP65

Schneider Electric BSH1403T31F1P AC servo motor BSH, Lexium 32, 27.8N.m, 3000rpm, keyed shaft, with brake, IP65

Schneider Electric
SKU:
BSH1403T31F1P
$3,030.25
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
AC servo motor BSH, Lexium 32, 27.8N.m, 3000rpm, keyed shaft, with brake, IP65
Additional Information
Stator Electrical Time Constant:
12.75 ms 20°C
Warranty:
18 months
Circularity Profile:
N/A
Brake Pull-In Power:
26 W
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Motor Flange Size:
140 mm
Shaft Diameter:
24 mm
Weight:
23 kg
Shaft Length:
50 mm
Centring Collar Depth:
3.5 mm
Product Compatibility:
LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Centring Collar Diameter:
130 mm
Number Of Mounting Holes:
4
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width:
40 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Holding Brake:
with
Circle Diameter Of The Mounting Holes:
165 mm
Device Short Name:
BSH
Range Compatibility:
Lexium 32
Country of Origin:
Germany
Key Width:
40 mm
Speed Feedback Resolution:
131072 points/turn
Number Of Motor Poles:
10
[Us] Rated Supply Voltage:
480 V
Net Weight:
23 kg
Continuous Stall Torque:
27.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 27.8 N.m LXM32.D72N4 24 A, 480 V, three phase
Mercury Free:
Yes
Number Of Motor Stacks:
3
Stator Inductance:
5.1 mH 20°C
Maximum Radial Force Fr:
1780 N 3000 rpm || 2030 N 2000 rpm || 2560 N 1000 rpm
Feedback Type:
single turn SinCos Hiperface
Product Or Component Type:
servo motor
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Length:
365.5 mm
Rohs Exemption Information:
Yes
Nominal Torque:
12.9 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.9 N.m LXM32.D72N4 24 A, 480 V, three phase
Sustainable Offer Status:
Green Premium product
Second Shaft:
without second shaft end
Nominal Output Power:
4100 W LXM32.D72N4 24 A, 400 V, three phase || 4100 W LXM32.D72N4 24 A, 480 V, three phase
Peak Stall Torque:
90.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 90.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Electrical Connection:
straight connectors
Maximum Axial Force Fa:
0.2 x Fr
Switching Frequency:
8 kHz
Mounting Holes Diameter:
11 mm
Rotor Inertia:
14.48 kg.cm²
Stator Resistance:
0.4 Ohm 20°C
Maximum Mechanical Speed:
4800 rpm
Mounting Support:
international standard
