Schneider Electric CAD32FC7 TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 127 V AC standard coil

Schneider Electric CAD32FC7 TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 127 V AC standard coil

Schneider Electric
SKU:
CAD32FC7
$63.25
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

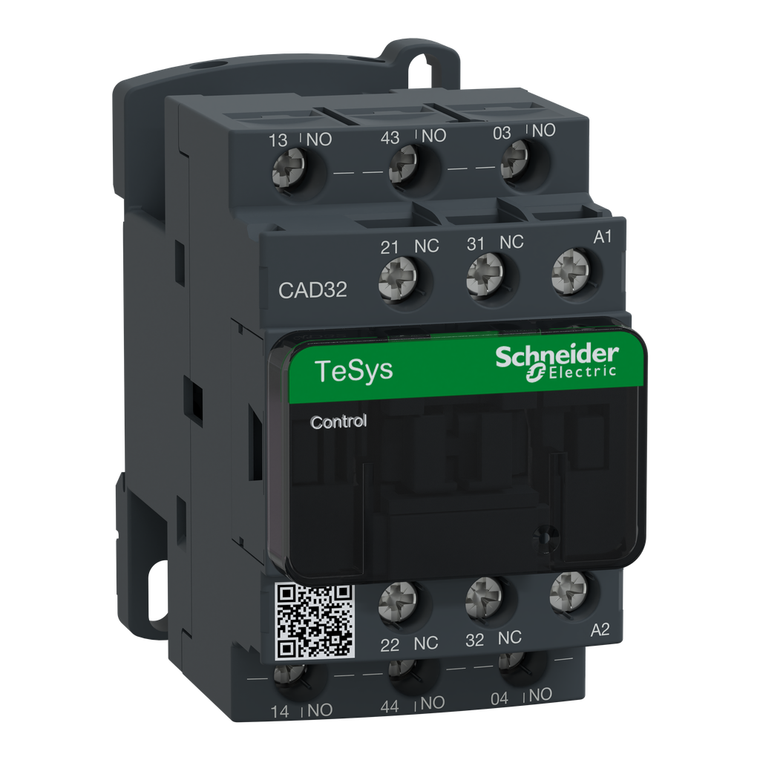

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 127V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Additional Information
Minimum Switching Current:
5 mA
Product Certifications:
CB || CCC || UL || CSA || EAC || CE || UKCA
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
Country of Origin:
Mexico
Ambient Air Temperature For Storage:
-60-80°C
Weight:
0.58 kg
Control Circuit Voltage Limits:
0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Connections - Terminals:
screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || sc
Maximum Operating Rate:
180 cyc/mn
Warranty:
18 months
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Mounting Support:
rail || plate
Inrush Power In Va:
70-70 VA 50 Hz (at 20°C)
Depth:
84 mm
Protective Treatment:
TH IEC 60068
[Ui] Rated Insulation Voltage:
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Hold-In Power Consumption In Va:
8-8 VA 50 Hz (at 20°C)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Minimum Switching Voltage:
17 V
Utilisation Category:
AC-14 || DC-13 || AC-15
Pole Contact Composition:
3 NO + 2 NC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tightening Torque:
1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
Device Short Name:
CAD
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1501004
Control Circuit Type:
AC 50/60 Hz
Product Or Component Type:
control relay
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Height:
77 mm
Operating Altitude:
0...9842.52 ft (0...3000 m)
Circularity Profile:
ENVEOLI1501004
Insulation Resistance:
> 10 MOhm
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
Operating Time:
12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening || 4...19 ms coil energisation and NC opening || 6...17 ms coil de-energisation and NC closing
Net Weight:
0.58 kg
Mechanical Durability:
30 Mcycles
Contactor Application:
control circuit
Ip Degree Of Protection:
IP2X front face VDE 0106
Range:
TeSys || TeSys Deca
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
