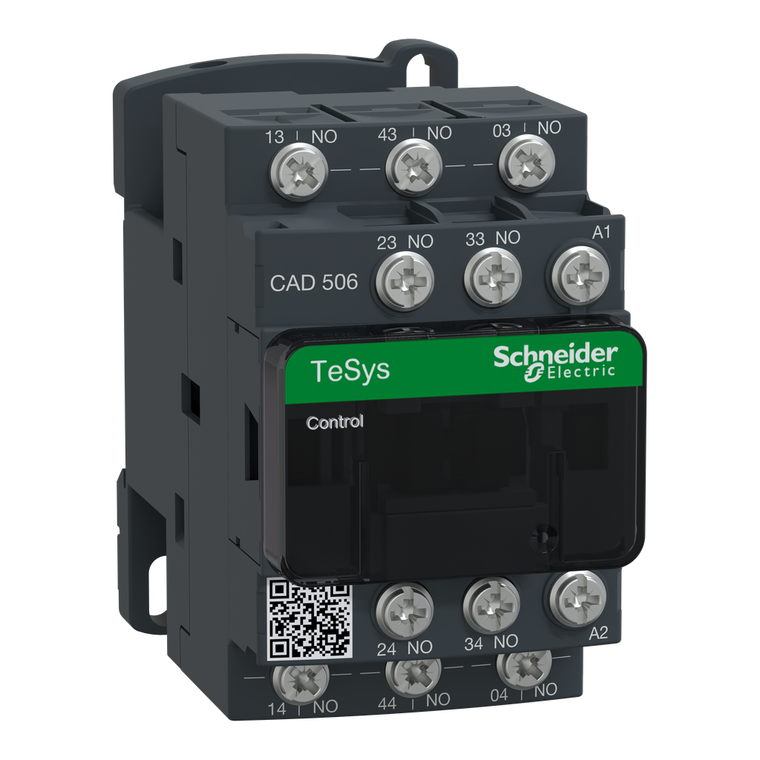

Schneider Electric CAD506F7 TeSys Deca control relay - 5 NO - <= 690 V - 110 V AC standard coil

(No reviews yet) Write a Review
SKU:
CAD506F7
MPN:
CAD506F7
Condition:
New
[Uc] Control Circuit Voltage:
110 V AC 50/60 Hz
Pole Contact Composition:
5 NO
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Operating Altitude:
0...9842.52 ft (0...3000 m)
Mounting Support:
plate || rail
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Certifications:
CB || CCC || UL || CSA || EAC || CE || UKCA
Operating Time:
12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Contactor Application:
control circuit
Hold-In Power Consumption In Va:
8-8 VA 50 Hz (at 20°C)
Environmental Disclosure:
ENVPEP1501004
Depth:
84 mm
Utilisation Category:
DC-13 || AC-14 || AC-15
Maximum Operating Rate:
180 cyc/mn
Device Short Name:
CAD
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
Mechanical Durability:
30 Mcycles
Country of Origin:
France
Product Or Component Type:
control relay
Product Name:
TeSys CAD
Ip Degree Of Protection:
IP2X front face VDE 0106
Minimum Switching Current:
5 mA
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
Inrush Power In Va:
70-70 VA 50 Hz (at 20°C)
Protective Treatment:
TH IEC 60068
Circularity Profile:
ENVEOLI1501004
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Range:
TeSys || TeSys Deca
Insulation Resistance:
> 10 MOhm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Circuit Voltage Limits:
0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
Connections - Terminals:
lugs-ring terminals 8 mm)
Sustainable Offer Status:
Green Premium product
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Eu Rohs Directive:
Compliant with Exemptions
Warranty:
18 months
Weight:
0.58 kg
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Minimum Switching Voltage:
17 V
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
$63.25

Description

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
