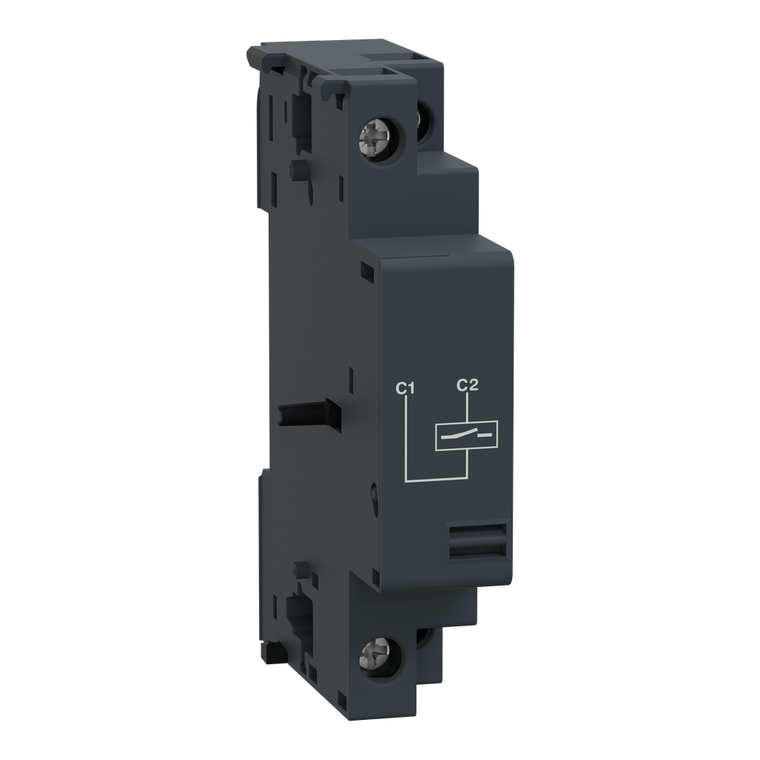

Schneider Electric GVAS225 Tesys Shunt Trip 240V Rhs Mount

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric GVAS225 Tesys Shunt Trip 240V Rhs Mount

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GVAS225

UPC:

3389110343724

MPN:

Condition:

New

Connections - Terminals:

screw clamp terminals 1 1-2.5 mm²solid || screw clamp terminals 2 1-2.5 mm²solid || screw clamp terminals 1 0.75-2.5 mm²flexible without cable end || screw clamp terminals 2 0.75-2.5 mm²flexible without cable end || screw clamp terminals 1 0.75-1

Tightening Torque:

< 1.4 N.m screw clamp terminals

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Height:

89 mm

Warranty:

18 months

Range:

TeSys || TeSys Deca

Inrush Power In W:

10.5 W

Net Weight:

0.105 kg

Toxic Heavy Metal Free:

Yes

Control Circuit Voltage Limits:

0.7...1.1 Un

Width:

18 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Range Compatibility:

TeSys GV2ME || TeSys GV2LE || TeSys GV2L || TeSys GV2P || TeSys GV3L || TeSys GV3P || TeSys Deca

Threshold Tripping Voltage:

0.75...0.2 Un

Color:

dark grey

Operating Time:

10...15 ms IEC 60947-1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Depth:

66 mm

Product Or Component Type:

shunt trip release

Device Short Name:

GVAS

Eu Rohs Directive:

Compliant

Inrush Power In Va:

14-14 VA AC

On-Load Factor:

1

Hold-In Power Consumption In W:

1.6-1.6 W

Mechanical Durability:

10000 cycles with GV3P and GV3L || 30000 cycles with GV2ME and GV2P

Quantity Per Set:

set of 10

Reach Free Of Svhc:

Yes

Hold-In Power Consumption In Va:

5-5 VA AC

[Ui] Rated Insulation Voltage:

690 V AC IEC 60947-1 || 600 V AC UL 60947-4-1 || 600 V AC CSA C22.2 No 60947-4-1

[Uc] Control Circuit Voltage:

220...240 V AC 50 Hz

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Mercury Free:

Yes

Datasheet:

View
