Schneider Electric HJA260704 Molded Case Circuit Breaker 600V 70A
Schneider Electric
$4,104.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

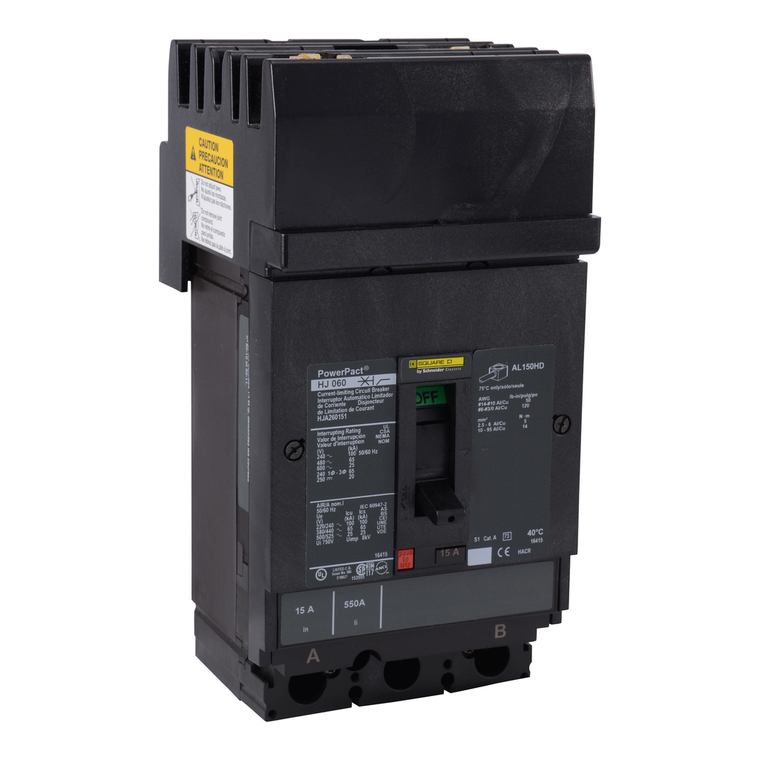

Schneider Electric HJA260704 Molded Case Circuit Breaker 600V 70A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 70A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Suitability For Isolation:
- yes IEC 60947-2
- Line Rated Current:
- 70-70 A
- Control Type:
- toggle
- Circularity Profile:
- ENVEOLI1311006EN
- Pollution Degree:
- 3 IEC 60947-1
- Environmental Disclosure:
- ENVPEP1311006EN
- Depth:
- 86 mm
- Device Application:
- distribution
- Phase Connection:
- BC
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Wire Stripping Length:
- 16 mm
- Network Frequency:
- 50/60 Hz
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Quality Labels:
- CE
- Product Certifications:
- UL || CSA || NOM
- Product Or Component Type:
- circuit breaker
- Magnetic Hold Current:
- 800 A
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Eu Rohs Directive:
- Compliant
- Breaking Capacity Code:
- J
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Quantity Per Set:
- 1
- Protected Poles Description:
- 2t
- Range:
- PowerPact
- Trip Unit Technology:
- thermal-magnetic
- Utilisation Category:
- category A
- Product Name:
- PowerPact H
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Mounting Support:
- bracket
- Color:
- Black
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection:
- I-Line connection, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Magnetic Tripping Current:
- 1450-1450 A
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Net Weight:
- 2.2 kg
- Mounting Height:
- 4.5 in
- Warranty:
- 18 months
- Width:
- 104 mm
- Continuous Current Rating:
- 0.8
- Communication Interface:
- Modbus || Ethernet
- Height:
- 163 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Terminal Identifier:
- AL150HD
- Mounting Mode:
- I-Line bracket)
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Poles Description:
- 2P
- Circuit Breaker Application:
- HACR rated
- Mercury Free:
- Yes
