Schneider Electric HRL36050M72 Motor Circuit Protector 600V 50A
Schneider Electric

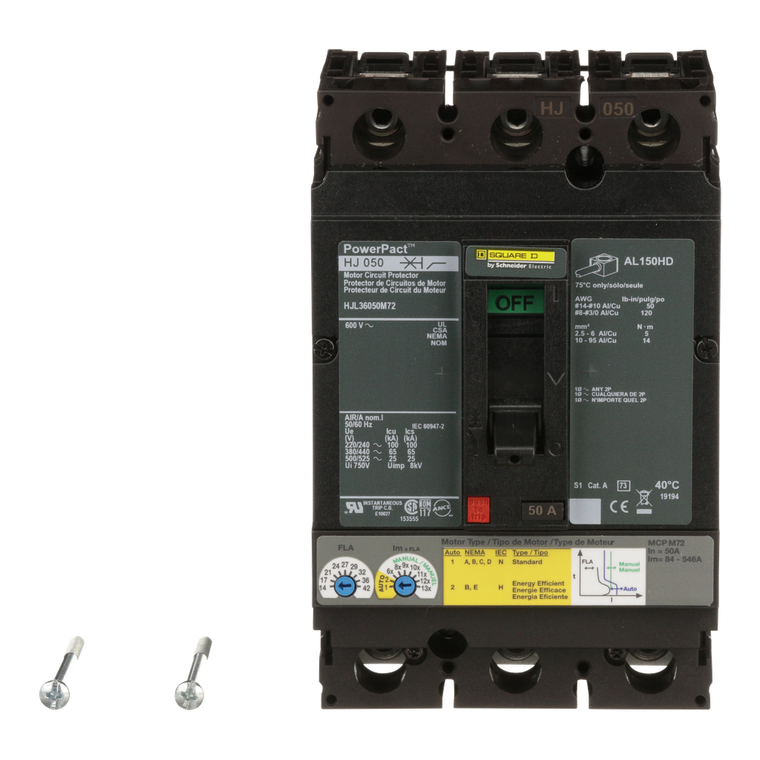

Schneider Electric HJL36050M72 Motor Circuit Protector 600V 50A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 50A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Terminal Identifier:
- AL150HD
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Ith] Conventional Free Air Thermal Current:
- 14-42 A
- Quality Labels:
- CE
- Ambient Air Temperature For Storage:
- -50-85 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Color:
- Black
- Pvc Free:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Net Weight:
- 2.2 kg
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Width:
- 104 mm
- Height:
- 163 mm
- Network Frequency:
- 50/60 Hz
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Breaking Capacity Code:
- J
- Device Application:
- distribution
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Mercury Free:
- Yes
- Quantity Per Set:
- 1
- Control Type:
- toggle
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP2206027EN
- Utilisation Category:
- category A
- Suitability For Isolation:
- yes IEC 60947-2
- Continuous Current Rating:
- 0.8
- Line Rated Current:
- 50-50 A
- Magnetic Tripping Current:
- 84-546 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Range:
- PowerPact
- Product Name:
- PowerPact H
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Electrical Connection:
- lugs, line || lugs, load
- Product Or Component Type:
- Motor Circuit Protector
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Depth:
- 86 mm
- Product Certifications:
- UL || CSA || NOM
- Mounting Mode:
- unit mount lug)
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI2206027EN
- Mounting Support:
- lug
- Poles Description:
- 3P
- Communication Interface:
- Modbus || Ethernet
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Protected Poles Description:
- 3t
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Wire Stripping Length:
- 16 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
