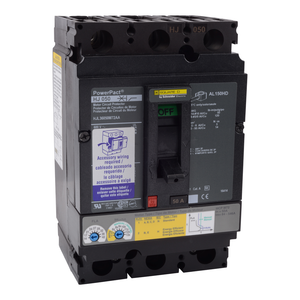

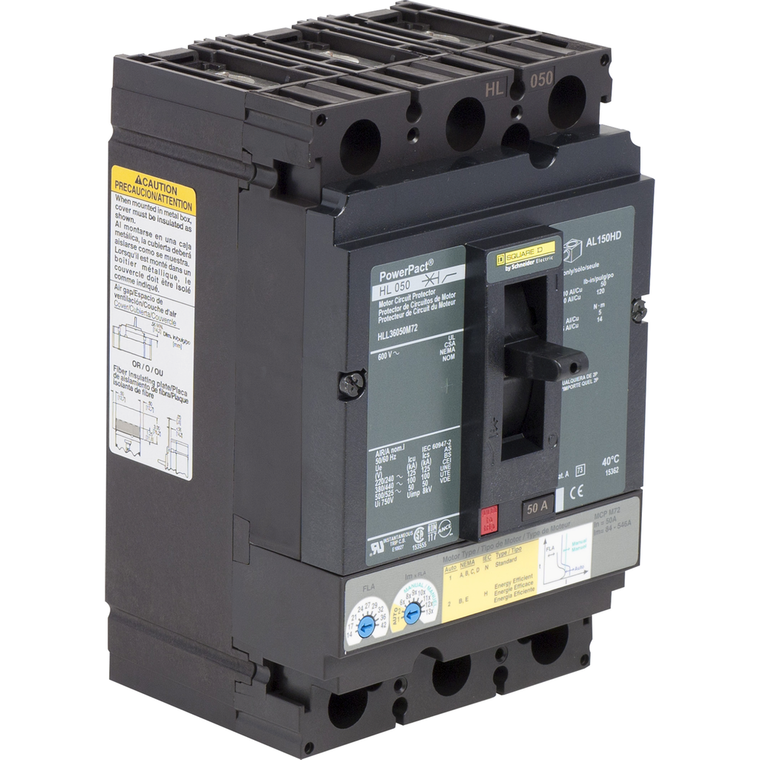

Schneider Electric HLL36050M72 Motor Circuit Protector 600V 50A

Schneider Electric HLL36050M72 Motor Circuit Protector 600V 50A

Schneider Electric
SKU:
HLL36050M72
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$1,553.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 50A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Additional Information
Continuous Current Rating:
0.8
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Device Application:
distribution
Rohs Exemption Information:
Yes
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Magnetic Tripping Current:
84-546 A
Mercury Free:
Yes
Communication Interface:
Modbus || Ethernet
Electrical Connection:
lugs, line || lugs, load
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Net Weight:
2.2 kg
Breaking Capacity Code:
L
Mounting Support:
lug
Eu Rohs Directive:
Compliant with Exemptions
[Ith] Conventional Free Air Thermal Current:
14-42 A
Ambient Air Temperature For Operation:
-2-70 °C
Pvc Free:
Yes
Utilisation Category:
category A
Wire Stripping Length:
16 mm
Quality Labels:
CE
Pollution Degree:
3 IEC 60947-1
Depth:
86 mm
Warranty:
18 months
Line Rated Current:
50-50 A
Poles Description:
3P
Protected Poles Description:
3t
Mounting Mode:
unit mount lug)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ambient Air Temperature For Storage:
-50-85 °C
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Suitability For Isolation:
yes IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
Motor Circuit Protector
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Product Certifications:
UL || CSA || NOM
Network Frequency:
50/60 Hz
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Terminal Identifier:
AL150HD
Product Name:
PowerPact H
Circularity Profile:
ENVEOLI2206027EN
Range:
PowerPact
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Quantity Per Set:
1
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Height:
163 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Environmental Disclosure:
ENVPEP2206027EN
Control Type:
toggle
Color:
Black
Ip Degree Of Protection:
front cover IP40 IEC 60529
Width:
104 mm
