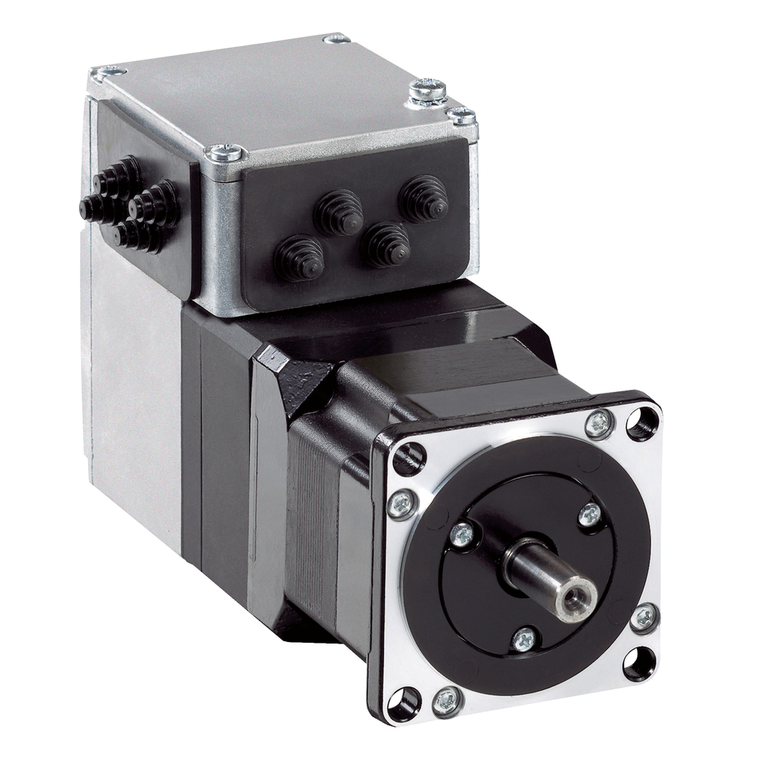

Schneider Electric ILA2K571TC1F0 Lexium Ila Servomot 24 48V Eth Ip Brake

SKU:

ILA2K571TC1F0

UPC:

3.60649E+12

MPN:

Condition:

New

Protection Type:

short circuit of the output voltage || safe torque off || overload of output voltage

Maximum Switching Current:

100 mA per output || 200 mA total

Nominal Speed:

5000 rpm 24 V || 7000 rpm 48 V

Centring Collar Depth:

1.6 mm

Nominal Torque:

0.31 N.m

Device Short Name:

ILA

Voltage State 1 Guaranteed:

15...30 V

Number Of Motor Stacks:

1

Marking:

CE

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Relative Humidity:

15-85 % without condensation

Type Of Cooling:

natural convection

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Electrical Connection:

industrial connector

Second Shaft:

without second shaft end

Warranty:

18 months

Discrete Output Voltage:

23...25 V

Associated Fuse Rating:

16 A

Centring Collar Diameter:

50 mm

Rohs Exemption Information:

Yes

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Circle Diameter Of The Mounting Holes:

66.6 mm

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Length:

190.8 mm

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Holding Brake:

with

Brake Pull-In Power:

10 W

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Range Of Product:

Lexium integrated drive

Standards:

IEC 60072-1 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || IEC 61800-3 || IEC 50347 || IEC 50178

Motor Flange Size:

57 mm

Mounting Support:

flange

Maximum Radial Force Fr:

89 N

[Us] Rated Supply Voltage:

24 V || 48 V

Net Weight:

1.4 kg

Environmental Disclosure:

ENVPEP2011004EN

Shaft Diameter:

9 mm

Product Or Component Type:

motion integrated drive

Communication Interface:

Ethernet/IP, Integrated

Current Consumption:

11000 mA peak || 7500 mA maximum continuous

Shaft Length:

20 mm

Rotor Inertia:

0.165 kg.cm²

Number Of Mounting Holes:

4

Peak Stall Torque:

0.45 N.m

Gear Box Type:

without

Product Certifications:

cUL || TÜV || UL

Network Type:

DC

Circularity Profile:

ENVEOLI2011004EN

Shaft End:

untapped

Number Of Motor Poles:

6

Transmission Rate:

125, 250, 500 kbauds

Feedback Type:

single turn encoder

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Voltage State 0 Guaranteed:

-3...4.5 V

Supply Voltage Limits:

18-55.2 V

Brake Release Time:

14 ms

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Holding Torque:

1.2 N.m holding brake

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Brake Application Time:

13 ms

Motor Type:

AC Synchronous Servo Motor

Continuous Stall Torque:

0.31 N.m

Speed Feedback Resolution:

16384 points/turn

Winding Type:

high speed of rotation and medium torque

Mounting Holes Diameter:

5.2 mm

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Service Life In Hours:

20000 h bearing

China Rohs Regulation:

X

Phase:

single phase

Ambient Air Temperature For Storage:

-25-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Input/Output Type:

4 signals (each be used as input or output)

Accuracy Error:

+/- 0.05 °

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Sustainable Offer Status:

Green Premium product
