Schneider Electric

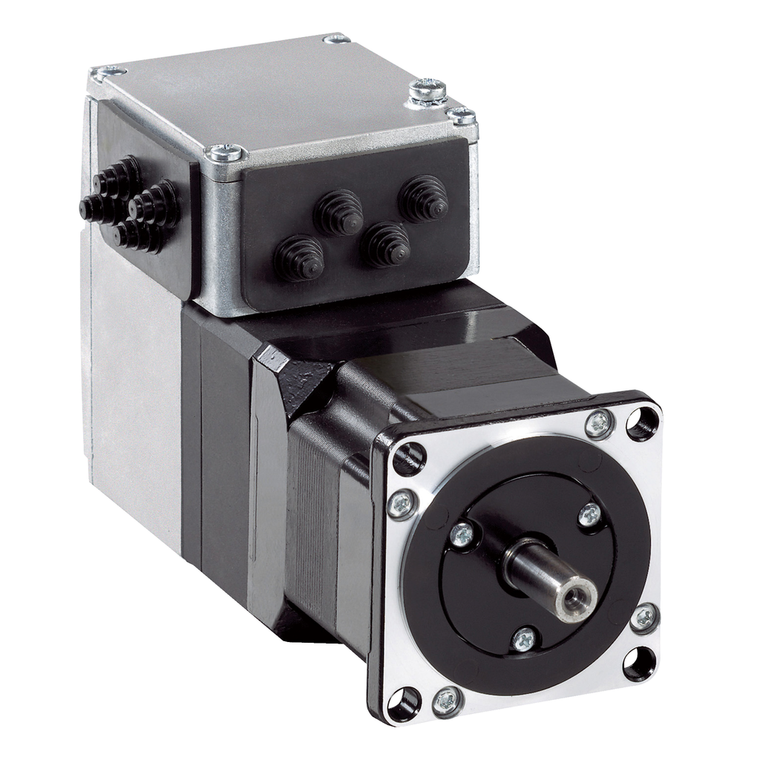

Schneider Electric ILA2K572PC1F0 Lexium Ila Servomot 24 48V Eth Ip Brake

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ILA2K572PC1F0 Lexium Ila Servomot 24 48V Eth Ip Brake

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILA2K572PC1F0

UPC:

3.60649E+12

MPN:

Condition:

New

Net Weight:

1.7 kg

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Nominal Torque:

0.78 N.m

[Us] Rated Supply Voltage:

24 V || 48 V

Accuracy Error:

+/- 0.05 °

Centring Collar Diameter:

50 mm

Marking:

CE

Brake Pull-In Power:

10 W

Standards:

IEC 61800-3, Ed 2 || IEC 50178 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || IEC 50347 || IEC 61800-3 || IEC 60072-1

Brake Application Time:

13 ms

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Circle Diameter Of The Mounting Holes:

66.6 mm

Rotor Inertia:

0.243 kg.cm²

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Maximum Switching Current:

100 mA per output || 200 mA total

Product Or Component Type:

motion integrated drive

Type Of Cooling:

natural convection

Length:

209.3 mm

Transmission Rate:

125, 250, 500 kbauds

Pvc Free:

Yes

Speed Feedback Resolution:

16384 points/turn

Mounting Holes Diameter:

5.2 mm

Supply Voltage Limits:

18-55.2 V

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Network Type:

DC

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Service Life In Hours:

20000 h bearing

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Motor Flange Size:

57 mm

Number Of Motor Poles:

6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Peak Stall Torque:

1.62 N.m

Second Shaft:

without second shaft end

Number Of Motor Stacks:

2

Motor Type:

AC Synchronous Servo Motor

Centring Collar Depth:

1.6 mm

Protection Type:

overload of output voltage || short circuit of the output voltage || safe torque off

Gear Box Type:

without

Device Short Name:

ILA

Mounting Support:

flange

Relative Humidity:

15-85 % without condensation

Range Of Product:

Lexium integrated drive

Current Consumption:

7000 mA maximum continuous || 8500 mA peak

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Holding Brake:

with

Voltage State 1 Guaranteed:

15...30 V

Input/Output Type:

4 signals (each be used as input or output)

Communication Interface:

Ethernet/IP, Integrated

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Nominal Speed:

1600 rpm 24 V || 3400 rpm 48 V

Circularity Profile:

ENVEOLI2011004EN

Environmental Disclosure:

ENVPEP2011004EN

Discrete Output Voltage:

23...25 V

Continuous Stall Torque:

0.78 N.m

Holding Torque:

1.2 N.m holding brake

Electrical Connection:

industrial connector

Sustainable Offer Status:

Green Premium product

Voltage State 0 Guaranteed:

-3...4.5 V

Brake Release Time:

14 ms

Mercury Free:

Yes

Phase:

single phase

Product Certifications:

TÜV || UL || cUL

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rohs Exemption Information:

Yes

Shaft End:

untapped

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-25-70 °C

Shaft Length:

20 mm

Maximum Radial Force Fr:

107 N

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Associated Fuse Rating:

16 A

Number Of Mounting Holes:

4

Winding Type:

medium speed of rotation and medium torque

China Rohs Regulation:

X

Feedback Type:

single turn encoder

Shaft Diameter:

9 mm

Warranty:

18 months
