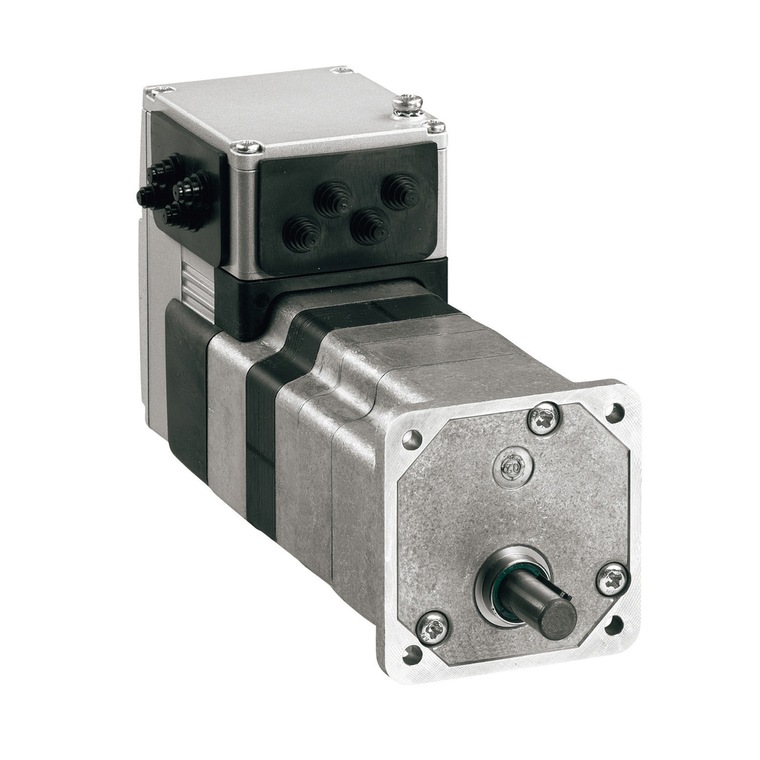

Schneider Electric ILE2K661PC1A2 Lexium Ile Bldc Mot 24 48V Eth Ip Gear

Schneider Electric ILE2K661PC1A2 Lexium Ile Bldc Mot 24 48V Eth Ip Gear

Schneider Electric
SKU:
ILE2K661PC1A2
|
UPC:
3606485204789
$1,740.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
brushless DC motor, Lexium ILA ILE ILS, 24..48V- EtherNet/IP interface, L = 174mm- 38:1
Additional Information
Phase:
single phase
Marking:
CE
Transmission Rate:
125, 250, 500 kbauds
Ip Degree Of Protection:
shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5
Maximum Radial Force Fr:
200 N long-term operation) || 200 N short-term operation)
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Maximum Axial Force Fa:
10 N long-term operation) || 80 N short-term operation)
Maximum Torsional Backlash:
1 °
Type Of Cooling:
natural convection
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Number Of Mounting Holes:
4
Rohs Exemption Information:
Yes
Commissioning Interface:
RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Product Certifications:
cUL || UL || TÜV
Ambient Air Temperature For Operation:
40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
Network Type:
DC
Current Consumption:
7000 mA peak || 5500 mA maximum continuous
Input/Output Type:
4 signals (each be used as input or output)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage:
48 V || 24 V
Product Or Component Type:
motion integrated drive
Circle Diameter Of The Mounting Holes:
73.54 mm
Feedback Type:
BLDC encoder
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Protection Type:
safe torque off || overload of output voltage || short circuit of the output voltage
Ambient Air Temperature For Storage:
-25-70 °C
Number Of Motor Stacks:
1
Holding Brake:
without
Peak Stall Torque:
13.07 N.m 24 V || 13.07 N.m 48 V
Mounting Support:
flange
Communication Interface:
Ethernet/IP, Integrated
Nominal Output Power:
119 W 48 V || 95 W 24 V
Accuracy Error:
+/- 0.5 point
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
ILE
Pvc Free:
Yes
Maximum Supply Current:
0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V
Circularity Profile:
ENVEOLI1411012EN
Second Shaft:
without second shaft end
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Number Of Motor Poles:
6
Length:
174 mm
Winding Type:
medium speed of rotation and medium torque
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft End:
keyed
Electrical Connection:
industrial connector
Range Of Product:
Lexium integrated drive
Motor Type:
brushless DC motor
Motor Flange Size:
66 mm
Gear Box Type:
straight teeth gear, 3 stages
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Voltage State 1 Guaranteed:
15...30 V
Associated Fuse Rating:
16 A
Centring Collar Diameter:
16 mm
Environmental Disclosure:
ENVPEP1411012EN
Detent Torque:
3 N.m
Sustainable Offer Status:
Green Premium product
Relative Humidity:
15-85 % without condensation
Centring Collar Depth:
4 mm
Mercury Free:
Yes
Net Weight:
1.85 kg
Warranty:
18 months
Nominal Speed:
107 rpm 24 V || 133 rpm 48 V
Supply Voltage Limits:
18-55.2 V
Speed Feedback Resolution:
12 points/turn motor || 0.8° gearbox output
Maximum Switching Current:
100 mA per output || 200 mA total
Maximum Mechanical Speed:
133 rpm
Continuous Stall Torque:
8.3 N.m
Nominal Torque:
7.3 N.m 24 V || 7.3 N.m 48 V
Mounting Holes Diameter:
4.4 mm
Reduction Ratio:
38:1 (75:2)
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Rotor Inertia:
211 kg.cm²
Service Life In Hours:
2500 h bearing short-term operation || 15000 h bearing long-term operation
Key Width:
16 mm
Discrete Output Voltage:
23...25 V
China Rohs Regulation:
X
Voltage State 0 Guaranteed:
-3...4.5 V
Shaft Length:
25 mm
Shaft Diameter:
10 mm
Standards:
EN 61800-3:2001, second environment || IEC 50347 || IEC 50178 || IEC 60072-1 || IEC 61800-3 || EN 61800-3 : 2001-02 || IEC 61800-3, Ed 2
Catalog:
View
Datasheet:
View
