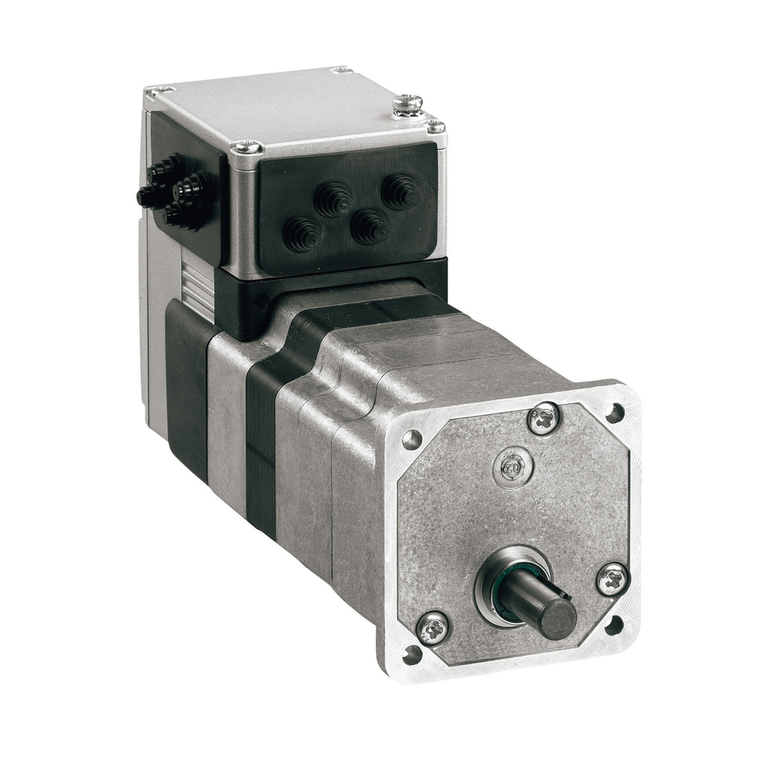

Schneider Electric ILE2K661PC1A3 Lexium Ile Bldc Mot 24 48V Eth Ip Gear

(No reviews yet) Write a Review

Write a Review

Schneider Electric ILE2K661PC1A3 Lexium Ile Bldc Mot 24 48V Eth Ip Gear

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ILE2K661PC1A3

UPC:

3606485204796

MPN:

Condition:

New

Phase:

single phase

Holding Brake:

without

Relative Humidity:

15-85 % without condensation

Circularity Profile:

ENVEOLI1411012EN

Reduction Ratio:

54:1 (490:9)

Shaft Diameter:

10 mm

Current Consumption:

7000 mA peak || 5500 mA maximum continuous

Electrical Connection:

industrial connector

Maximum Mechanical Speed:

92 rpm

Winding Type:

medium speed of rotation and medium torque

Rohs Exemption Information:

Yes

Maximum Torsional Backlash:

1 °

Nominal Output Power:

112 W 48 V || 90 W 24 V

Number Of Motor Stacks:

1

Key Width:

16 mm

Transmission Rate:

125, 250, 500 kbauds

China Rohs Regulation:

X

Mercury Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Network Type:

DC

Input/Output Type:

4 signals (each be used as input or output)

[Us] Rated Supply Voltage:

24 V || 48 V

Range Of Product:

Lexium integrated drive

Shaft End:

keyed

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Feedback Type:

BLDC encoder

Device Short Name:

ILE

Speed Feedback Resolution:

12 points/turn motor || 0.55° gearbox output

Warranty:

18 months

Centring Collar Diameter:

16 mm

Accuracy Error:

+/- 0.5 point

Mounting Support:

flange

Continuous Stall Torque:

11.6 N.m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Centring Collar Depth:

4 mm

Protection Type:

overload of output voltage || short circuit of the output voltage || safe torque off

Length:

174 mm

Ambient Air Temperature For Storage:

-25-70 °C

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Environmental Disclosure:

ENVPEP1411012EN

Maximum Switching Current:

100 mA per output || 200 mA total

Net Weight:

1.85 kg

Type Of Cooling:

natural convection

Number Of Mounting Holes:

4

Nominal Speed:

73 rpm 24 V || 92 rpm 48 V

Motor Type:

brushless DC motor

Associated Fuse Rating:

16 A

Circle Diameter Of The Mounting Holes:

73.54 mm

Detent Torque:

4.36 N.m

Maximum Radial Force Fr:

200 N long-term operation) || 200 N short-term operation)

Sustainable Offer Status:

Green Premium product

Product Certifications:

cUL || TÜV || UL

Gear Box Type:

straight teeth gear, 4 stages

Discrete Output Voltage:

23...25 V

Voltage State 0 Guaranteed:

-3...4.5 V

Marking:

CE

Service Life In Hours:

2500 h bearing short-term operation || 15000 h bearing long-term operation

Product Or Component Type:

motion integrated drive

Pvc Free:

Yes

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Number Of Motor Poles:

6

Maximum Axial Force Fa:

10 N long-term operation) || 80 N short-term operation)

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Motor Flange Size:

66 mm

Mounting Holes Diameter:

4.4 mm

Second Shaft:

without second shaft end

Shaft Length:

25 mm

Peak Stall Torque:

20.9 N.m 24 V || 20.9 N.m 48 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Communication Interface:

Ethernet/IP, Integrated

Voltage State 1 Guaranteed:

15...30 V

Standards:

IEC 61800-3, Ed 2 || IEC 50347 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3 || IEC 50178 || EN 61800-3 : 2001-02

Maximum Supply Current:

0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V

Supply Voltage Limits:

18-55.2 V

Nominal Torque:

10 N.m 24 V || 10 N.m 48 V

Rotor Inertia:

441 kg.cm²
