Schneider Electric

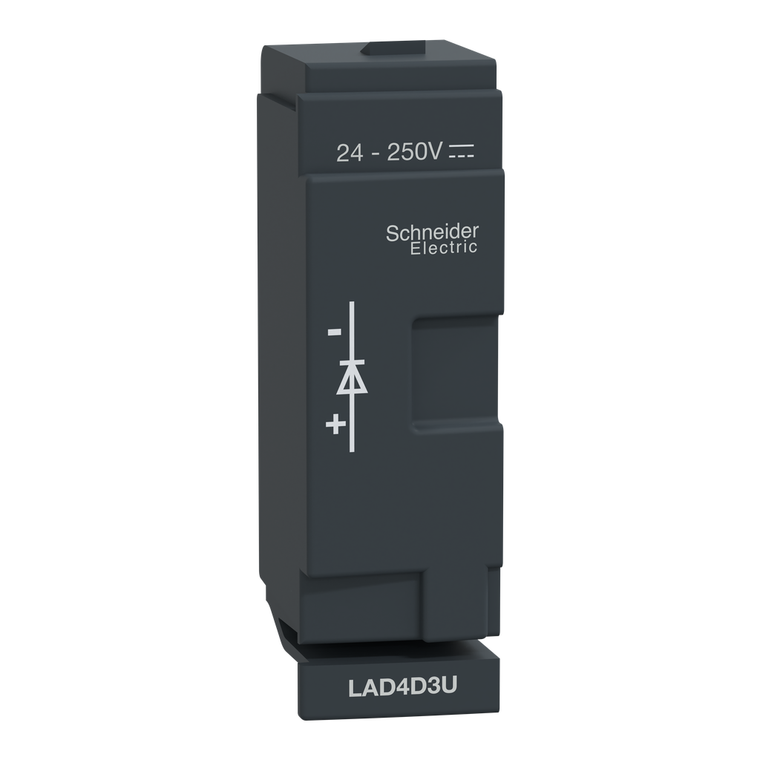

Schneider Electric LAD4D3U D40A to D65A Diode 24-250VDC Suppressor

(No reviews yet) Write a Review
SKU:
LAD4D3U
MPN:
LAD4D3U
Condition:
New
Mercury Free:
Yes
Standards:
IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5
Weight:
0.02 kg
Mounting Mode:
by clips
Eu Rohs Directive:
Compliant
Sustainable Offer Status:
Green Premium product
Mounting Location:
front
Range:
TeSys || TeSys Deca
Product Compatibility:
3P LC1D40A...D80A || 4P LC1DT60A...DT80A
Ambient Air Temperature For Storage:
-40-80°C
Country of Origin:
Czechia
Net Weight:
0.02 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
LAD4
Ambient Air Temperature For Operation:
-25-55°C
Warranty:
18 months
Circularity Profile:
N/A
Ip Degree Of Protection:
IP2XIEC 60529
Suppressor Technology:
flywheel diode
Maximum Peak Voltage:
1 Uc
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information:
Yes
[Uc] Control Circuit Voltage:
24...250 V DC
Product Certifications:
UL || CSA
Environmental Disclosure:
ENVPEP111253EN
Product Or Component Type:
suppressor module
Reach Free Of Svhc:
Yes
Color:
dark grey
Toxic Heavy Metal Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
$31.44

Description

TeSys D suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 24-250V DC control circuit voltage, it provides a flywheel diode protection ensuring no transient overvoltage. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).
