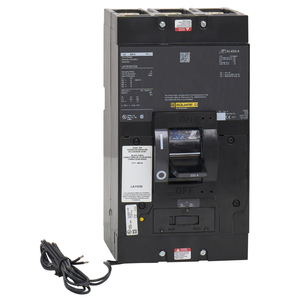

Schneider Electric LAL361501021 Circuit breaker, LA, 150A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, shunt trip

Schneider Electric LAL361501021 Circuit breaker, LA, 150A, 3 pole, 600VAC, 22kA, 250VDC, 10kA, lugs, thermal magnetic, shunt trip

Schneider Electric
SKU:
LAL361501021
$5,525.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 150A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker 1021 suffix indicates a factory installed 120/240VAC shunt trip. LA breakers are UL 489, CSA, IEC certified.
Additional Information
Country of Origin:
United States
Environmental Disclosure:
ENVPEP1410004EN
Mounting Mode:
unit mount
Pvc Free:
Yes
Circularity Profile:
N/A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Technology:
thermal-magnetic
Magnetic Tripping Current:
1500-1500 A
Product Or Component Type:
circuit breaker
Rohs Exemption Information:
Yes
Magnetic Hold Current:
750 A
Product Certifications:
UL Listed || CSA || IEC
Terminal Identifier:
AL400LA
Halogen Content Performance:
Halogen free plastic parts product
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR rated
Warranty:
18 months
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Electrical Connection:
lugs, load || lugs, line
Line Rated Current:
150 A
Depth:
5.84 in
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Poles Description:
3P
