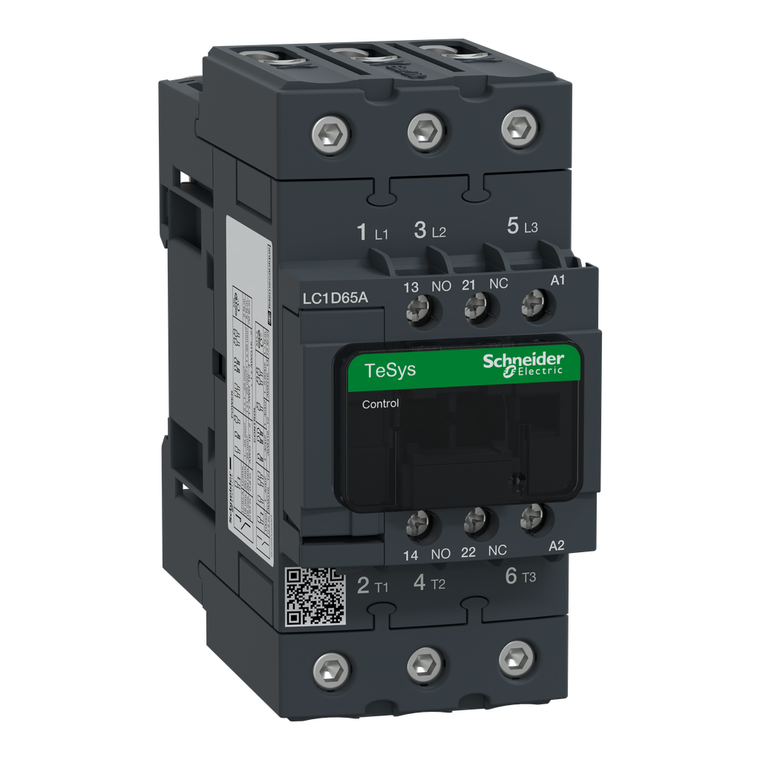

Schneider Electric LC1D65AR7 IEC contactor, TeSys Deca, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 440VAC 50/60Hz coil, open

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC1D65AR7 IEC contactor, TeSys Deca, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 440VAC 50/60Hz coil, open

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC1D65AR7

UPC:

MPN:

LC1D65AR7

Condition:

New

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Product Or Component Type:

contactor

Pole Contact Composition:

3 NO

Environmental Disclosure:

ENVPEP1503009EN

Electrical Durability:

1.4 Mcycles 80 A AC-1 <= 440 V || 1.45 Mcycles 65 A AC-3 <= 440 V || 1.45 Mcycles 65 A AC-3e <= 440 V

Compatibility Code:

LC1D

Fire Resistance:

850°C IEC 60695-2-1

Permissible Ambient Air Temperature Around The Device:

-40-60°C || 60-70°C with derating

Rated Breaking Capacity:

1000 A at 440 V for power circuit conforming to IEC 60947

Rohs Exemption Information:

Yes

Heat Dissipation:

4-5 W at 50/60 Hz

Toxic Heavy Metal Free:

Yes

Mechanical Durability:

6 Mcycles

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Mounting Support:

plate || rail

Warranty:

18 months

Range:

TeSys || TeSys Deca

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Overvoltage Category:

III

Weight:

0.86 kg

Eu Rohs Directive:

Compliant

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 80 A (at 60°C) for power circuit

Auxiliary Contacts Type:

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Depth:

120 mm

Pollution Degree:

3

Range Of Product:

TeSys Deca

Width:

55 mm

Sustainable Offer Status:

Green Premium product

Minimum Switching Current:

5 mA for Signaling circuit

Coil Technology:

without built-in suppressor module

Motor Power Kw:

11 kW at 400 V AC 50/60 Hz (AC-4) || 18.5 kW at 220...230 V AC 50/60 Hz (AC-3) || 30 kW at 380...400 V AC 50/60 Hz (AC-3) || 37 kW at 500 V AC 50/60 Hz (AC-3) || 37 kW at 660...690 V AC 50/60 Hz (AC-3) || 18.5 kW at 220...230 V AC 50/60 Hz (AC-3e) ||

Connections - Terminals:

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - c

Operating Time:

4...19 ms opening || 12...26 ms closing

Utilisation Category:

AC-4 || AC-1 || AC-3 || AC-3e

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Average Impedance:

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Mercury Free:

Yes

Power Dissipation Per Pole:

9.6 W AC-1 || 6.3 W AC-3 || 6.3 W AC-3e

Net Weight:

0.86 kg

Climatic Withstand:

IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Protective Cover:

with

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Flame Retardance:

V1 conforming to UL 94

Non-Overlap Time:

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Signaling Circuit Frequency:

25...400 Hz

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Poles Description:

3P

Hold-In Power Consumption In Va:

13-13 VA 60 Hz cos phi 0.3 (at 20°C) || 15-15 VA 50 Hz cos phi 0.3 (at 20°C)
