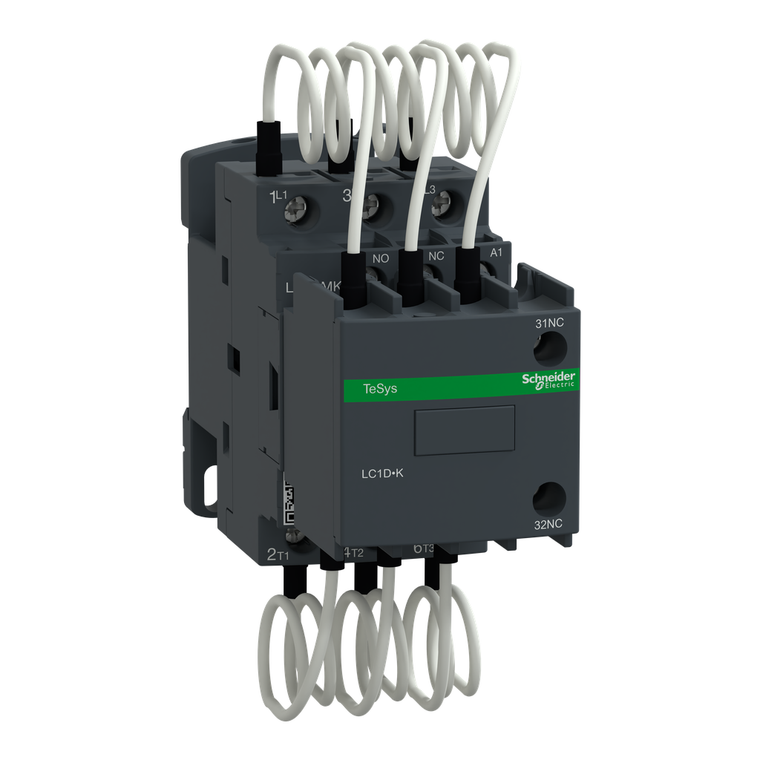

Schneider Electric LC1DMKV7 Capacitor contactor, TeSys Deca, 25 kVAR at 400 V/50 Hz, coil 400 V AC 50/60 Hz

(No reviews yet) Write a Review
SKU:
LC1DMKV7
MPN:
LC1DMKV7
Condition:
New
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Device Application:
control
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Auxiliary Contact Composition:
1 NO + 2 NC instantaneous
Device Location In System:
inside delta interruption || line interruption
Eu Rohs Directive:
Compliant
Control Circuit Type:
AC 50/60 Hz
Utilisation Category:
AC-6b
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals
Device Short Name:
LC1DMK
Environmental Disclosure:
ENVPEP111274EN
Weight:
0.63 kg
Standards:
EN/IEC 60947-1 || EN/IEC 60947-4-1 || IEC 60335-1
Contactor Application:
power factor correction
Product Or Component Type:
capacitor duty contactor
Reach Free Of Svhc:
Yes
Warranty:
18 months
Ambient Air Temperature For Operation:
-5-60°C
Pole Contact Composition:
3 NO
Electrical Durability:
300000 cycles 400 V || 200000 cycles 690 V
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Support:
DIN rail || plate
Ip Degree Of Protection:
IP20 front face IEC 60529
Country of Origin:
France
Sustainable Offer Status:
Green Premium product
Depth:
127 mm
[Ue] Rated Operational Voltage:
power circuit 690 V AC 50/60 Hz
Product Certifications:
IECEE CB Scheme || UKCA
[Uc] Control Circuit Voltage:
400 V AC 50/60 Hz
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range:
TeSys || TeSys Deca
Circularity Profile:
N/A
Reactive Power Rating:
14 kvar 230-230 V AC 50 Hz 60°C || 25 kvar 400-400 V AC 50 Hz 60°C || 27 kvar 440-440 V AC 50 Hz 60°C || 42 kvar 690-690 V AC 50 Hz 60°C
Poles Description:
3P
Ambient Air Temperature For Storage:
-60-80°C
Operating Altitude:
0...9842.52 ft (0...3000 m)
Connections - Terminals:
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable en
Maximum Operating Rate:
240 cyc/h
Toxic Heavy Metal Free:
Yes
Net Weight:
0.63 kg
Auxiliary Contacts Type:
mechanically linked 1 NO + 2 NC IEC 60947-5-1
Product Name:
TeSys LC1D.K || TeSys Deca
$727.20

Description

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 25kVAR@400V 50Hz (42kVAR@690V). It provides a 400V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
