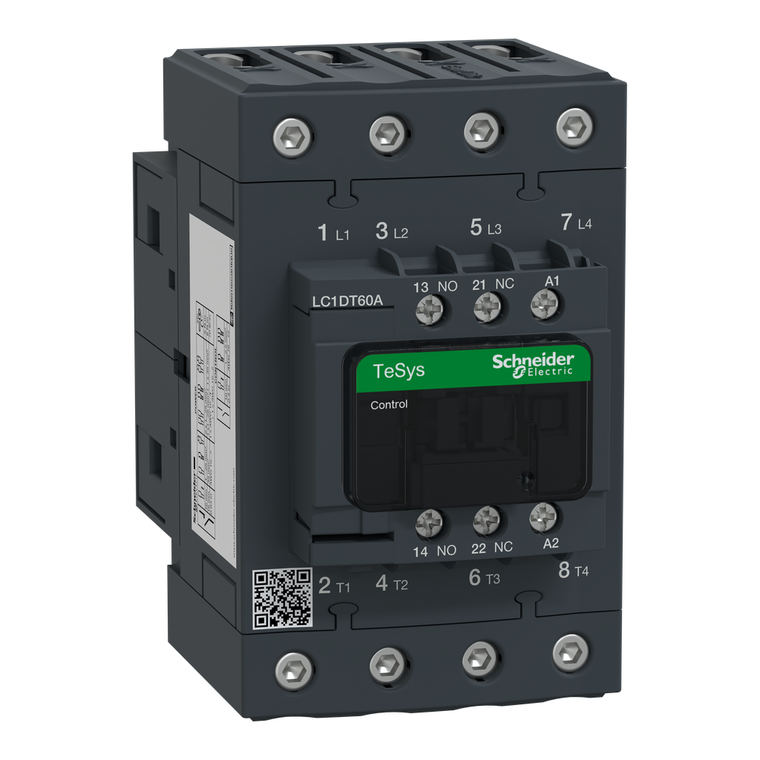

Schneider Electric LC1DT60AD7 IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 4 NO, 42VAC 50/60Hz coil, open style
Schneider Electric
$353.16
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LC1DT60AD7 IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 4 NO, 42VAC 50/60Hz coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 42 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.40 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Depth:
- 120 mm
- Control Circuit Type:
- AC 50/60 Hz
- Protective Cover:
- with
- Reach Free Of Svhc:
- Yes
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Compatibility Code:
- LC1D
- Heat Dissipation:
- 4-5 W at 50/60 Hz
- Range Of Product:
- TeSys Deca
- Climatic Withstand:
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Pollution Degree:
- 3
- Minimum Switching Current:
- 5 mA for Signaling circuit
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
- Range:
- TeSys || TeSys Deca
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Mechanical Durability:
- 6 Mcycles
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
- Mounting Support:
- rail || plate
- Average Impedance:
- 1.6 mOhm - Ith 60 A 50 Hz for power circuit
- Inrush Power In Va:
- 140-140 VA 60 Hz cos phi 0.75 (at 20°C) || 160-160 VA 50 Hz cos phi 0.75 (at 20°C)
- Height:
- 122 mm
- Contactor Application:
- resistive load
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Rohs Exemption Information:
- Yes
- Fire Resistance:
- 850°C IEC 60695-2-1
- Environmental Disclosure:
- ENVPEP1503009EN
- Sustainable Offer Status:
- Green Premium product
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Circularity Profile:
- ENVEOLI1503009EN
- Hold-In Power Consumption In Va:
- 13-13 VA 60 Hz cos phi 0.3 (at 20°C) || 15-15 VA 50 Hz cos phi 0.3 (at 20°C)
- [Icw] Rated Short-Time Withstand Current:
- 320 A 40°C - 10 s for power circuit || 720 A 40°C - 1 s for power circuit || 72 A 40°C - 10 min for power circuit || 165 A 40°C - 1 min for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
- [Ie] Rated Operational Current:
- 60 A (at <60°C) at <= 440 V AC AC-1 for power circuit
- Protective Treatment:
- THIEC 60068-2-30
- Signaling Circuit Frequency:
- 25...400 Hz
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 60 A (at 60°C) for power circuit
- Toxic Heavy Metal Free:
- Yes
- Coil Technology:
- without built-in suppressor module
- Width:
- 70 mm
- Tightening Torque:
- control circuit 1.7 N.m EverLink BTR screw connectors flat Ø 6 mm || control circuit 1.7 N.m EverLink BTR screw connectors Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BT
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- [Ui] Rated Insulation Voltage:
- power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1
- Overvoltage Category:
- III
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Pvc Free:
- Yes
- Product Or Component Type:
- contactor
- Connections - Terminals:
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - c
- Device Short Name:
- LC1D
