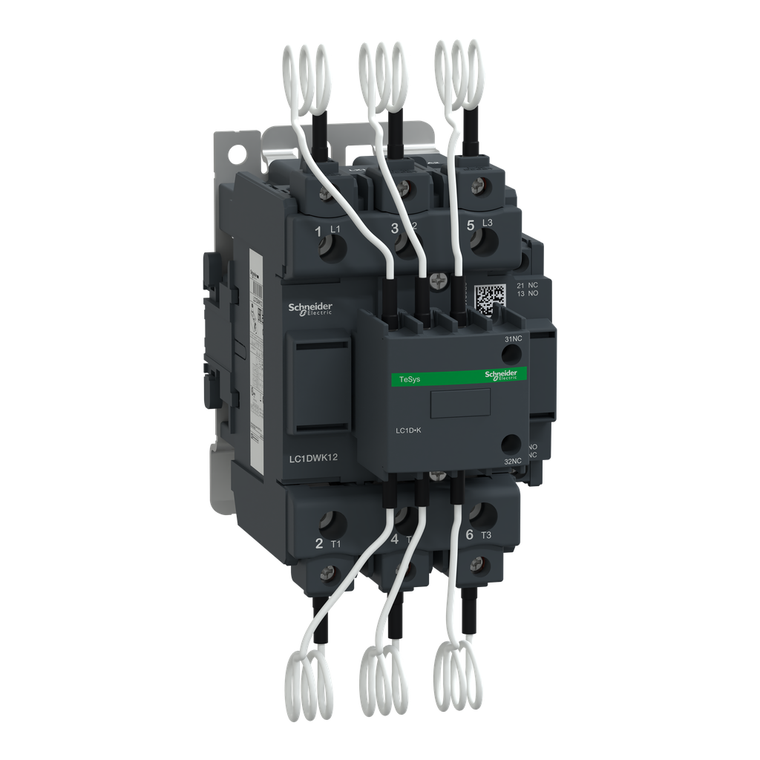

Schneider Electric LC1DWK12M7 Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, screw clamp terminals
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
- Contactor Application:
- power factor correction
- Ambient Air Temperature For Operation:
- -5-60°C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Country of Origin:
- Czechia
- Toxic Heavy Metal Free:
- Yes
- Auxiliary Contact Composition:
- 1 NO + 2 NC instantaneous
- Tightening Torque:
- power circuit 9 N.m connector || control circuit 1.7 N.m screw clamp terminals
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- capacitor duty contactor
- Product Certifications:
- IECEE CB Scheme || UL || CSA || UKCA
- Range:
- TeSys
- Weight:
- 1.65 kg
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 154 mm
- [Ue] Rated Operational Voltage:
- power circuit 690 V AC 50/60 Hz
- Utilisation Category:
- AC-6b
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 2 NC IEC 60947-5-1
- Control Circuit Type:
- AC 50/60 Hz
- Electrical Durability:
- 300000 cycles 400 V || 200000 cycles 690 V
- Mercury Free:
- Yes
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Device Application:
- control
- Reactive Power Rating:
- 35 kvar 230-230 V AC 50 Hz 60°C || 63 kvar 400-400 V AC 50 Hz 60°C || 67 kvar 440-440 V AC 50 Hz 60°C || 104 kvar 690-690 V AC 50 Hz 60°C || 30 kvar 230-230 V AC 60 Hz 60°C || 60 kvar 460-460 V AC 60 Hz 60°C || 80 kvar 575-575 V AC 60 Hz 60°C
- Warranty:
- 18 months
- Product Name:
- TeSys LC1D.K || TeSys Deca
- Environmental Disclosure:
- ENVPEP111274EN
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mounting Support:
- DIN rail || plate
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Maximum Operating Rate:
- 240 cyc/h
- Pole Contact Composition:
- 3 NO
- Eu Rohs Directive:
- Compliant
- Net Weight:
- 1.65 kg
- Poles Description:
- 3P
- Device Short Name:
- LC1DWK
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Connections - Terminals:
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable en
- [Uc] Control Circuit Voltage:
- 220 V AC 50/60 Hz
- Ambient Air Temperature For Storage:
- -60-80°C
