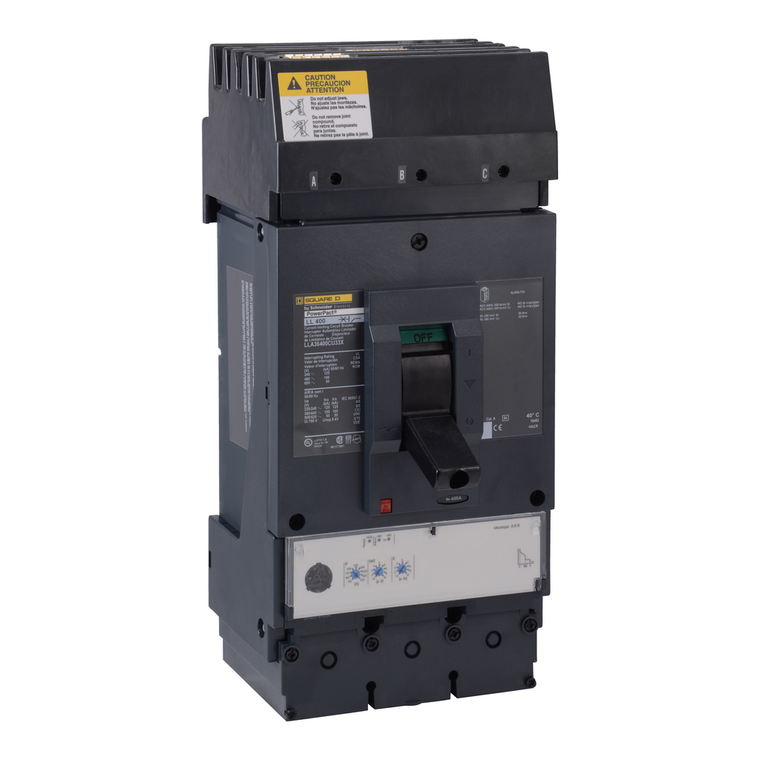

Schneider Electric LDA36400CU33X Molded Case Circuit Breaker 600V 400A

Schneider Electric LDA36400CU33X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LDA36400CU33X
|
UPC:
785901609506
Availability:
Contact us to confirm availability and lead times.
$6,506.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Warranty:
18 months
Ambient Air Temperature For Storage:
-50-85 °C
Mounting Support:
bracket
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Pvc Free:
Yes
Control Type:
toggle
Terminal Identifier:
AL600LS52K3
Trip Unit Name:
MicroLogic 3.3 S
Device Short Name:
L-Frame
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Utilisation Category:
category A
Mounting Mode:
I-Line bracket)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Height:
340 mm
Wire Stripping Length:
31 mm || 61 mm
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Electrical Connection:
I-Line connection, line || lugs, load
Product Name:
PowerPact L
Net Weight:
6.2 kg
Sustainable Offer Status:
Green Premium product
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Phase Connection:
ABC
Range:
PowerPact
Circularity Profile:
ENVEOLI2206029EN
Product Certifications:
UL || CSA || NOM
Ip Degree Of Protection:
front cover IP40
Ambient Air Temperature For Operation:
-2-70 °C
Poles Description:
3P
Environmental Disclosure:
ENVPEP2206029EN
Circuit Breaker Application:
HACR rated
Breaking Capacity Code:
D
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Communication Interface:
Modbus || Ethernet
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Continuous Current Rating:
1
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Protection Technology:
current limiter
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Suitability For Isolation:
yes IEC 60947-2
Line Rated Current:
400-400 A
Depth:
110 mm
Rohs Exemption Information:
Yes
Device Application:
distribution
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Mounting Height:
6 in
Mercury Free:
Yes
Width:
140 mm
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Color:
Black
