Schneider Electric LE1D093A62OG70 Enclosed Starter 600Vac 9A Iec

Schneider Electric LE1D093A62OG70 Enclosed Starter 600Vac 9A Iec

Schneider Electric
SKU:
LE1D093A62OG70
|
UPC:
7.85901E+11
$164.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

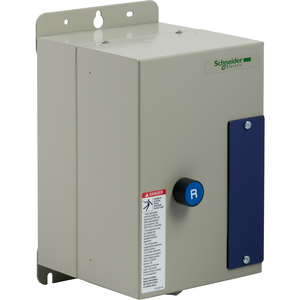

TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D09G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 2HP at 208VAC, 2HP at 230VAC, 5HP at 460VAC and 7.5HP at 600VAC 3 phase ratings. Contactor has a 1/3HP at 120VAC and 1HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
Additional Information
[Ie] Rated Operational Current Ac:
0.375
Circularity Profile:
N/A
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
[Ue] Rated Operational Voltage:
120 V AC 50/60 Hz
Eu Rohs Directive:
Compliant
Toxic Heavy Metal Free:
Yes
Auxiliary Contact Composition:
1 NO + 1 NC
[Uc] Control Circuit Voltage:
600 V AC
Rohs Exemption Information:
Yes
Maximum Horse Power Rating:
0.3-0.3 hp 120 V AC, 1 phase || 1-1 hp 240 V AC, 1 phase || 2-2 hp 208 V AC, 3 phase || 2-2 hp 230 V AC, 3 phase || 5-5 hp 460 V AC, 3 phase || 7.5-7.5 hp 575 V AC, 3 phase
Pvc Free:
Yes
Warranty:
18 months
Location Of Connection:
line
Product Or Component Type:
full voltage starter
Nema Degree Of Protection:
NEMA 1 steel
Mercury Free:
Yes
Range Of Product:
Instakits
Reach Free Of Svhc:
Yes
Sustainable Offer Status:
Green Premium product
Motor Starter Type:
non reversing
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Certifications:
CSA || UL || IEC
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP111273EN
Brochure:
View
Catalog:
View
Datasheet:
View
