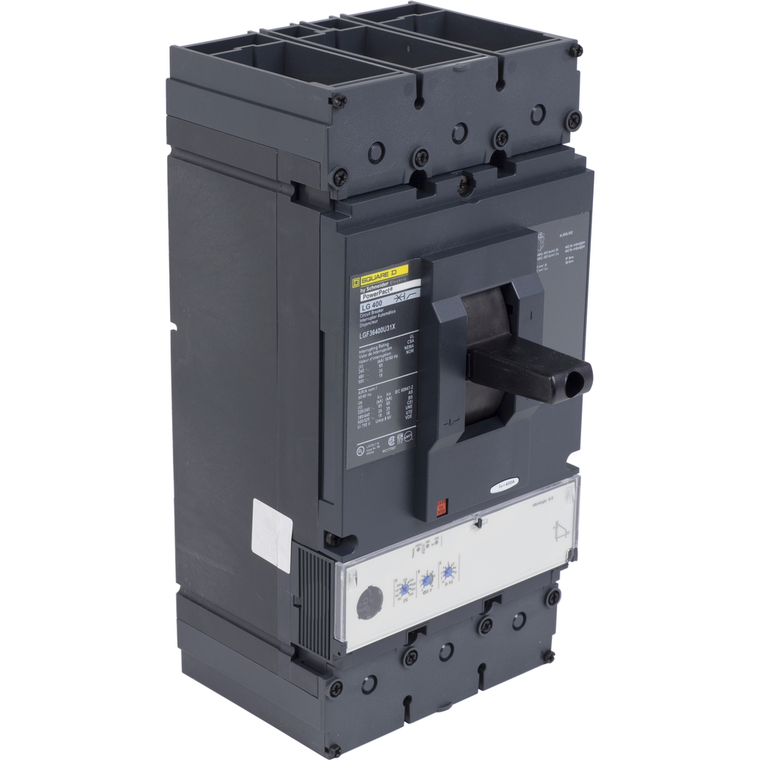

Schneider Electric LJF36600U31X Molded Case Circuit Breaker 480V 400A

Schneider Electric LJF36600U31X Molded Case Circuit Breaker 480V 400A

Schneider Electric
SKU:
LJF36600U31X
|
UPC:
785901474906
Availability:
Contact us to confirm availability and lead times.
$10,541.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has a busbar connection. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Product Or Component Type:
circuit breaker
Product Certifications:
UL || CSA || NOM
Color:
Black
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Ip Degree Of Protection:
front cover IP40
Product Name:
PowerPact L
Utilisation Category:
category A
Rohs Exemption Information:
Yes
Net Weight:
6.2 kg
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Pvc Free:
Yes
Device Short Name:
L-Frame
Mercury Free:
Yes
Electrical Connection:
busbar connection, line || busbar connection, load
Continuous Current Rating:
0.8
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Poles Description:
3P
Depth:
110 mm
Communication Interface:
Modbus || Ethernet
Mounting Support:
busbar
Breaking Capacity Code:
J
Control Type:
toggle
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
140 mm
Mounting Mode:
unit mount busbar)
Environmental Disclosure:
ENVPEP2206029EN
Ambient Air Temperature For Storage:
-50-85 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-2-70 °C
Trip Unit Name:
MicroLogic 3.3
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Network Frequency:
50/60 Hz
Height:
340 mm
Pollution Degree:
3 IEC 60947-1
Wire Stripping Length:
31 mm || 61 mm
Range:
PowerPact
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2206029EN
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Line Rated Current:
600-600 A
Terminal Identifier:
AL600LS52K3
Protection Technology:
current limiter
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Warranty:
18 months
Device Application:
distribution
Eu Rohs Directive:
Compliant with Exemptions
Suitability For Isolation:
yes IEC 60947-2
