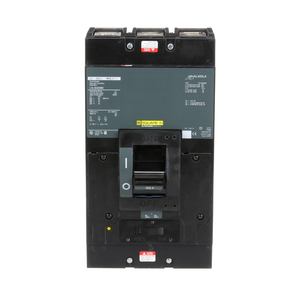

Schneider Electric LLL36400U31XLY Molded Case Circuit Breaker 600V 400A

Schneider Electric LLL36400U31XLY Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LLL36400U31XLY
|
UPC:
3606486284063
Availability:
Contact us to confirm availability and lead times.
$9,919.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. This unit includes factory installed low amp lugs.
Additional Information
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Product Or Component Type:
circuit breaker
Breaking Capacity Code:
L
Ambient Air Temperature For Storage:
-50-85 °C
Line Rated Current:
400-400 A
Poles Description:
3P
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Net Weight:
6.2 kg
Product Certifications:
UL || CSA || NOM
Depth:
110 mm
Terminal Identifier:
AL600LS52K3
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pollution Degree:
3 IEC 60947-1
Product Name:
PowerPact L
Device Application:
distribution
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Circuit Breaker Application:
HACR rated
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Mounting Mode:
unit mount lug)
Wire Stripping Length:
31 mm || 61 mm
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Utilisation Category:
category A
Control Type:
toggle
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-2-70 °C
Eu Rohs Directive:
Compliant with Exemptions
Device Short Name:
L-Frame
Height:
340 mm
Protection Technology:
current limiter
Color:
Black
Circularity Profile:
ENVEOLI2206029EN
Width:
140 mm
Continuous Current Rating:
0.8
Accessory / Separate Part Type:
low amperage lug
Mounting Support:
lug
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Warranty:
18 months
Rohs Exemption Information:
Yes
Network Frequency:
50/60 Hz
Communication Interface:
Modbus || Ethernet
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Pvc Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Range:
PowerPact
Trip Unit Name:
MicroLogic 3.3
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Ip Degree Of Protection:
front cover IP40
Environmental Disclosure:
ENVPEP2206029EN
Suitability For Isolation:
yes IEC 60947-2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Long Time Pick-Up Adjustment Range:
0.25...1 x In
